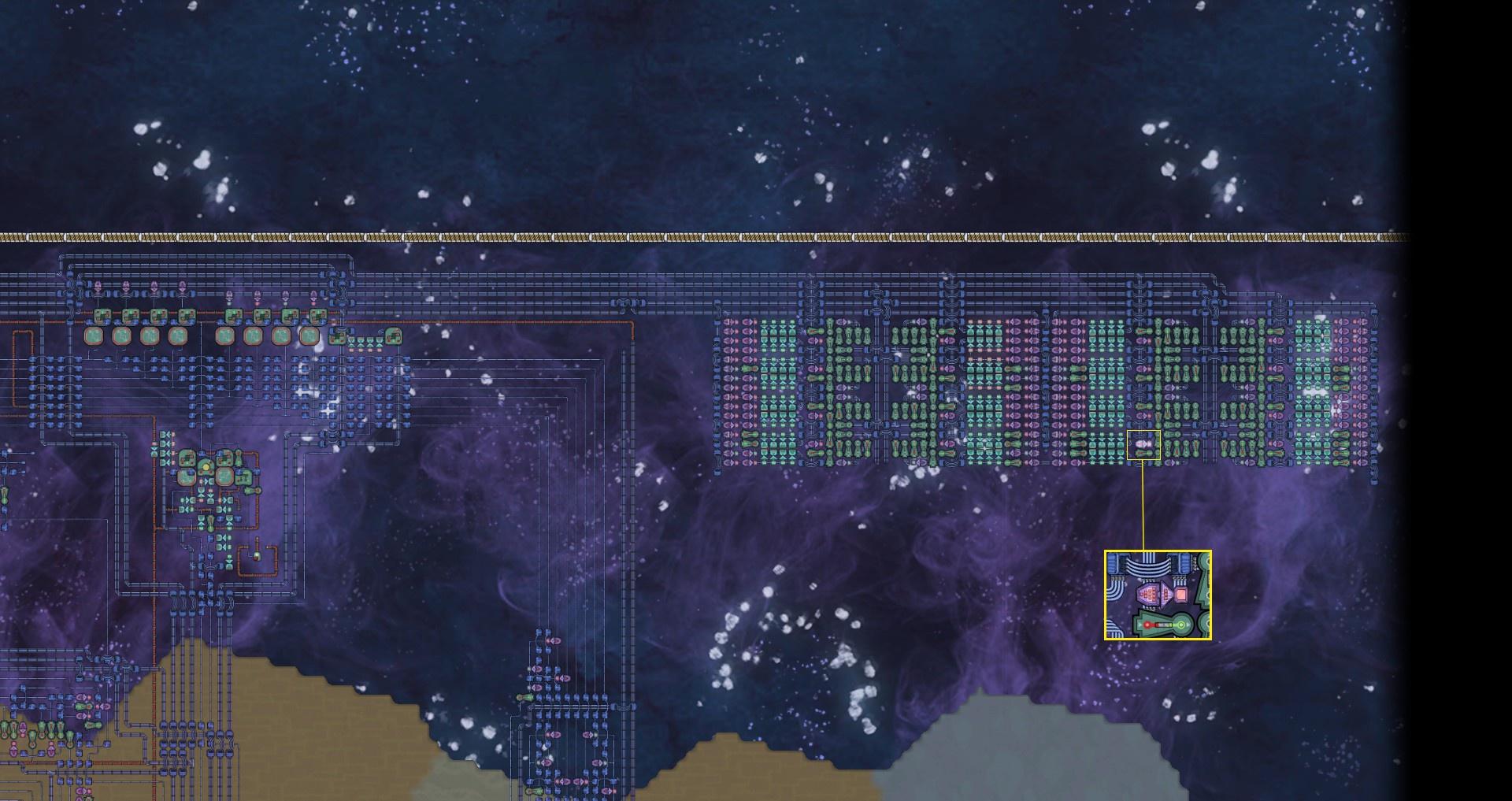

Arnadath Posted December 18, 2020 Share Posted December 18, 2020 It finally happened guys. I told you within the week and i kept the promise. The pre-alpha build for the cpu is here. arn vortex 16 byte v1.02.sav Now, i haven't finished the push and pop functions, so no saving to the memory as of yet, but you can play around, maybe write your own code (and most importantly find bugs and report them here ). So, a quick manual so that you know how to work around this lil' beast First of, enter sandbox and dev mode (backspace and ctrl+F4). To start the machine , toggle off the power button (if you go to electric grid overlay, the power button is inside the CLK area. Also it's the only switch in the map.) The machine runs this program (if you dont know assembly, read the explanation below) MOV NUL, AX MOV IMM ($01) , BX ADD AX,BX MOV IMM ($0A), BX CMP AX,BX JLT IMM($01) JMP IMM ($00) So, what this program does, is this. It loads 0 to AX and 1 to BX. Adds them and puts the result in AX. Then loads 10 to BX and compares them. If AX is less than BX then go back to the second step and loop (load 1 to BX, add them, compare them etc). If AX is Equal or greater than BX then reset . Essentially the program is a loop that counts to 10 and then resets itself. And a quick list of the opcodes for the daredevils that want to program it: Spoiler BIT| 7 | 6 | 5 | 4 | 3 | 2 | 1 | 0 | X = don't care | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | NOP | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1 | JMP | 0 | 0 | 0 | 0 | 0 | 0 | 1 | 0 | JMC (jump if carry) | 0 | 0 | 0 | 0 | 0 | 0 | 1 | 1 | JNC ( jump if not carry) | 0 | 0 | 0 | 0 | 0 | 1 | 0 | 0 | JLT ( jump less than) | 0 | 0 | 0 | 0 | 0 | 1 | 0 | 1 | JNLT ( jump not less than) | 0 | 0 | 0 | 0 | 0 | 1 | 1 | 0 | JLE (jump less than or equal) | 0 | 0 | 0 | 0 | 0 | 1 | 1 | 1 | JNLE ( jump not less than or equal | 0 | 0 | 0 | 0 | 1 | 0 | 0 | 0 | reserved | 0 | 0 | 0 | 0 | 1 | 0 | 0 | 1 | reserved | 0 | 0 | 0 | 0 | 1 | 0 | 1 | 0 | JE (jump if equal | 0 | 0 | 0 | 0 | 1 | 0 | 1 | 1 | JNE (jump not equal | 0 | 0 | 0 | 0 | 1 | 1 | 0 | 0 | JGT (jump greater than) | 0 | 0 | 0 | 0 | 1 | 1 | 0 | 1 | JNGT (jump not greater than) | 0 | 0 | 0 | 0 | 1 | 1 | 1 | 0 | JGE (jump greater than or equal) | 0 | 0 | 0 | 0 | 1 | 1 | 1 | 1 | JNGE (jump not greater than or equal) MOV| 0 | 1 | S | S | S | D | D | D | MOVE's the 3 bit for source and destination, are as follows 0 0 0 = NULL (no register) 0 0 1 = Sigma (a register that always holds the result of the last arithmetic function processed) 0 1 0 = AX 0 1 1 = BX 1 0 0 = IMM (immediate). Immediate is represented as the next memory location in the memory 1 0 1 = reserved 1 1 0 = PC (program counter) 1 1 1 = SP (stack pointer) ALU| 1 | Y | Y | Y | Y | wrA/B| pnA | pnB YYYY: 000X = NOT 001X = OR 010X = AND 011X = XOR 1000 = SHL 1001 = SHR 1010 = ROL 1011 = ROR 110X = ADD 111X = CMP There is a small programmer for the RAM to the left most side. To start programming the ram, disconnect it from the cpu, or at least disconnect the address bus. Manually set the adress, then connect the not gate to the right to the bus coming from above it., then, to the right, set the bits from highest to lowest and connect them to the two data busses . Then first disconnect the not gate, leave an automation tick to pass and then disconnect the to data lines.. That's it, have fun. A more in depth tutorial will be coming with the next update Link to comment Share on other sites More sharing options...
Slvrsrfr Posted December 18, 2020 Share Posted December 18, 2020 excellent. hope to see some good stuff Link to comment Share on other sites More sharing options...
kbn Posted December 18, 2020 Share Posted December 18, 2020 Excellent work. I don't understand the core of it at all, but I played with it a bit, looking at the bits of information stored in the 16 bytes of RAM and the opcode in the quicklist. There were two things that looked like bugs. First, there is a misconfiguration in some of the ribbon readers that make up the RAM referenced by RAM address "1110". Second, there appears to be no difference between code JLT and code JLE. 8 hours ago, Arnadath said: MOV NUL, AX MOV IMM ($01) , BX ADD AX,BX MOV IMM ($0A), BX CMP AX,BX JLT IMM($01) JMP IMM ($00) I think the program code for the 6th step with JLT is in RAM addresses "0111" and "1000", but the inside view of RAM address "0111" is "00000110". In the quick list, "00000110" is JLE, not JLT. I don't know if it's simply a mistake in the quicklist or in the contents of the RAM, but for now I rewrote the contents of RAM address "0111" to "00000100 (JLT?)" and tried to run it. During execution, I kept an eye on the memory toggles that make up the AX registers, but both JLT? and JLE? counted up to 10. So there seems to be no difference. If it is JLE, then the AX register should count up to 11, so I think something is bugged. Note that my knowledge of assembly is almost entirely based on information I got from a game called "SHENZHEN I/O", so what I'm saying may be completely misguided. I'm sorry if I'm wrong. Link to comment Share on other sites More sharing options...
Arnadath Posted December 18, 2020 Author Share Posted December 18, 2020 4 hours ago, kbn said: Excellent work. I don't understand the core of it at all, but I played with it a bit, looking at the bits of information stored in the 16 bytes of RAM and the opcode in the quicklist. There were two things that looked like bugs. First, there is a misconfiguration in some of the ribbon readers that make up the RAM referenced by RAM address "1110". Second, there appears to be no difference between code JLT and code JLE. I think the program code for the 6th step with JLT is in RAM addresses "0111" and "1000", but the inside view of RAM address "0111" is "00000110". In the quick list, "00000110" is JLE, not JLT. I don't know if it's simply a mistake in the quicklist or in the contents of the RAM, but for now I rewrote the contents of RAM address "0111" to "00000100 (JLT?)" and tried to run it. During execution, I kept an eye on the memory toggles that make up the AX registers, but both JLT? and JLE? counted up to 10. So there seems to be no difference. If it is JLE, then the AX register should count up to 11, so I think something is bugged. Note that my knowledge of assembly is almost entirely based on information I got from a game called "SHENZHEN I/O", so what I'm saying may be completely misguided. I'm sorry if I'm wrong. Really nice catch. I suspect that either i have swapped the equality and zero flags, or they didn't have enough time to settle after a CMP. Link to comment Share on other sites More sharing options...
avc15 Posted December 18, 2020 Share Posted December 18, 2020 Are there files, in the computer, in the computer? Link to comment Share on other sites More sharing options...
Slvrsrfr Posted December 18, 2020 Share Posted December 18, 2020 oh god, it's inception or the finale of 'Lost' Link to comment Share on other sites More sharing options...
pether Posted December 18, 2020 Share Posted December 18, 2020 But does it run DOOM? Spoiler Just kidding, really impressive! Link to comment Share on other sites More sharing options...
Gurgel Posted December 18, 2020 Share Posted December 18, 2020 44 minutes ago, pether said: But does it run DOOM? Reveal hidden contents Just kidding, really impressive! That should probably take another 30 years or so if I remember my computer history right. Link to comment Share on other sites More sharing options...
ZanthraSW Posted December 19, 2020 Share Posted December 19, 2020 11 hours ago, Gurgel said: That should probably take another 30 years or so if I remember my computer history right. The Atanasoff-Berry computer was 1942, and doom was 1993. Link to comment Share on other sites More sharing options...
he77789 Posted January 1, 2021 Share Posted January 1, 2021 I almost had a heart attack when I saw the assembly; that looks very similar to x86 assembly and I thought you made a 8086 in game Link to comment Share on other sites More sharing options...
molsen234 Posted January 1, 2021 Share Posted January 1, 2021 That is a very respectable accomplishment, even with a few bugs (the ones I saw were already mentioned above)! I kept seeing black holes though, I was wondering if you have experienced that too? I cut the setup down to 16 bytes memory and obviously the game was running faster at high speed then, but still some black holes even while I paused to make lunch. I'll start the process of disabling mods and look at the logs, because a) I am curious, and b) I want to play more with your CPU Again, marvelous work here. Thanks for sharing this with us! Link to comment Share on other sites More sharing options...
Arnadath Posted January 1, 2021 Author Share Posted January 1, 2021 8 minutes ago, molsen234 said: That is a very respectable accomplishment, even with a few bugs (the ones I saw were already mentioned above)! I kept seeing black holes though, I was wondering if you have experienced that too? I cut the setup down to 16 bytes memory and obviously the game was running faster at high speed then, but still some black holes even while I paused to make lunch. I'll start the process of disabling mods and look at the logs, because a) I am curious, and b) I want to play more with your CPU Again, marvelous work here. Thanks for sharing this with us! Thanks for your words of encouragement, and a happy new year as well. Indeed i get a lot of black holes, and i have no mods installed at all. My computer is a 6 year old coal burner with emphysima and severe alzheimer's, so i kinda hoped it would run smoother in better computers. Dunno what to tell you other than save often. Link to comment Share on other sites More sharing options...
molsen234 Posted January 1, 2021 Share Posted January 1, 2021 1 hour ago, Arnadath said: Thanks for your words of encouragement, and a happy new year as well. Indeed i get a lot of black holes, and i have no mods installed at all. My computer is a 6 year old coal burner with emphysima and severe alzheimer's, so i kinda hoped it would run smoother in better computers. Dunno what to tell you other than save often. Well I disabled my whole heap of mods, and it has been running stable since my last post. So there is that I installed the Lights Out mod yesterday while I was talking to someone about a mod suggestion, and had forgotten about it. That mod potentially does some heavy duty texture updates to the whole map. In combination with me running your save file with the automation overlay on (which I think uses the same mechanisms), I think that might have been the cause of my crashes. I didn't get a crash log, so can't tell for sure, but no crashes now. Thanks for taking time to reply above, and best wishes for the new year! Edit: I am back to running the full 32 bytes setup by the way. Link to comment Share on other sites More sharing options...
Arnadath Posted January 1, 2021 Author Share Posted January 1, 2021 48 minutes ago, molsen234 said: Well I disabled my whole heap of mods, and it has been running stable since my last post. So there is that I installed the Lights Out mod yesterday while I was talking to someone about a mod suggestion, and had forgotten about it. That mod potentially does some heavy duty texture updates to the whole map. In combination with me running your save file with the automation overlay on (which I think uses the same mechanisms), I think that might have been the cause of my crashes. I didn't get a crash log, so can't tell for sure, but no crashes now. Thanks for taking time to reply above, and best wishes for the new year! Edit: I am back to running the full 32 bytes setup by the way. Nice, that's encouraging. Hopefully i'll get a new pc some time in the future with more ram and i'll start programming a pong game. Link to comment Share on other sites More sharing options...
molsen234 Posted January 1, 2021 Share Posted January 1, 2021 I am programming a Fibonacci sequence right now I was playing with adding a programming interface, but there isn't much room to get around so I just follow your instructions for now. Also, I see you were using NOT gates for the programming, is there a reason for not using regular switches? It would look great with a toggle interface like on the PDP-8 I just had a crash, again while paused and writing the above comment. Seems to be LogicRibbonReader.UpdateVisuals() that causes it. Anyway, not due to your design for sure! Edit: Yes, I found it. It allocates a max of 256 animation handles, when it runs out it causes this crash. Strange that it is allocating animations when paused. Those animations will not play, so that will naturally pile up. I think I'll file a bug report later today or tomorrow. Link to comment Share on other sites More sharing options...
molsen234 Posted January 1, 2021 Share Posted January 1, 2021 Edit2: IMPORTANT - It just occurred to me that I need to ask your permission to submit your save file if I log a bug report. Link to comment Share on other sites More sharing options...
Arnadath Posted January 1, 2021 Author Share Posted January 1, 2021 59 minutes ago, molsen234 said: I am programming a Fibonacci sequence right now I was playing with adding a programming interface, but there isn't much room to get around so I just follow your instructions for now. Also, I see you were using NOT gates for the programming, is there a reason for not using regular switches? It would look great with a toggle interface like on the PDP-8 I just had a crash, again while paused and writing the above comment. Seems to be LogicRibbonReader.UpdateVisuals() that causes it. Anyway, not due to your design for sure! Edit: Yes, I found it. It allocates a max of 256 animation handles, when it runs out it causes this crash. Strange that it is allocating animations when paused. Those animations will not play, so that will naturally pile up. I think I'll file a bug report later today or tomorrow. The idea was that bootloader would insert the program contents in memory. Iwas planning to make this using a liquid reservoir and element sensors to encode binary information. Also automation updates when the game is paused. That's acctually useful for us. Try for eample placing an automation ribbon over another ribbon while paused. Every time you click, it updates the automation, and you can use it to time things and calculate timing. 32 minutes ago, molsen234 said: Edit2: IMPORTANT - It just occurred to me that I need to ask your permission to submit your save file if I log a bug report. Of course you can. I love that what i made sparks creativity. Actually i should post an update, because i solved the issue with the flags and also i need to connect the bitshifting gizmo. Expect that later today Link to comment Share on other sites More sharing options...
molsen234 Posted January 1, 2021 Share Posted January 1, 2021 Thanks for the insights on the animation of automation! I'll wait with further programming until I see the update then! My fibonacci code in case you are interested: L0: MOV IMM ($01), AX MOVE IMM ($01), BX L1: ADD AX,BX ADD BX,AX JNC L1 JMP L0 The next number will be in alternating AX and BX, or every time in sigma of course if all goes well Link to comment Share on other sites More sharing options...
Arnadath Posted January 2, 2021 Author Share Posted January 2, 2021 7 hours ago, molsen234 said: Thanks for the insights on the animation of automation! I'll wait with further programming until I see the update then! My fibonacci code in case you are interested: L0: MOV IMM ($01), AX MOVE IMM ($01), BX L1: ADD AX,BX ADD BX,AX JNC L1 JMP L0 The next number will be in alternating AX and BX, or every time in sigma of course if all goes well Well, here's the update. Also programmed your code in it. Well almost... Instead of JNC L1, it just jumps to L1 anyway. Also it mov's 0 to AX in the beggining. I'll leave the rest up to you my devoted choosen xD arn vortex 16 byte v1.04.sav Link to comment Share on other sites More sharing options...
TheMule Posted January 2, 2021 Share Posted January 2, 2021 First of all, this is amazing. Second, if you're accepting suggestion for your next project: https://en.wikipedia.org/wiki/Core_War I have no idea if a small engine capable of running those programs is possible in ONI. Link to comment Share on other sites More sharing options...
he77789 Posted January 2, 2021 Share Posted January 2, 2021 For me, I would rather suggest maybe a C99 compiler to the machine code. That would bootstrap most programs that we commonly use and make developing programs on it way easier. Link to comment Share on other sites More sharing options...
Arnadath Posted January 2, 2021 Author Share Posted January 2, 2021 9 hours ago, TheMule said: First of all, this is amazing. Second, if you're accepting suggestion for your next project: https://en.wikipedia.org/wiki/Core_War I have no idea if a small engine capable of running those programs is possible in ONI. Core warwould be cool. But alas, there is no relative addressing, only absolute. Link to comment Share on other sites More sharing options...
he77789 Posted January 3, 2021 Share Posted January 3, 2021 I would imagine that relative addressing would not be that hard to do. You could use 101 as signifying relative addressing, then the next memory location would be the constant offset if the topmost bit is 0. If the topmost bit is 1, then the address would be AX+offset instead of PC+offset. Link to comment Share on other sites More sharing options...
Arnadath Posted January 3, 2021 Author Share Posted January 3, 2021 8 hours ago, he77789 said: I would imagine that relative addressing would not be that hard to do. You could use 101 as signifying relative addressing, then the next memory location would be the constant offset if the topmost bit is 0. If the topmost bit is 1, then the address would be AX+offset instead of PC+offset. You can already do that, You can mov pc to bx, add ax and mov it back to pc. Thing is, it isn't one instruction, but rather three. Link to comment Share on other sites More sharing options...
molsen234 Posted January 3, 2021 Share Posted January 3, 2021 I am still having fun with the CPU, today it has not crashed yet, as I try to not pause the game. That seems to help. There is a burning question though: Are you planning on adding memory write to the MOV instruction, or perhaps a STA / STB instruction (might be more intuitive)? It would be a great next step Link to comment Share on other sites More sharing options...
