Hello, I am trying to make a system but encountered an issue. Please help me solve it



TLDR

Spoiler

Receiver is controlled by either signal A or B. How to prioritize signal A and disable the receiver (when the signal from input A comes in), regardless of signals coming from input B

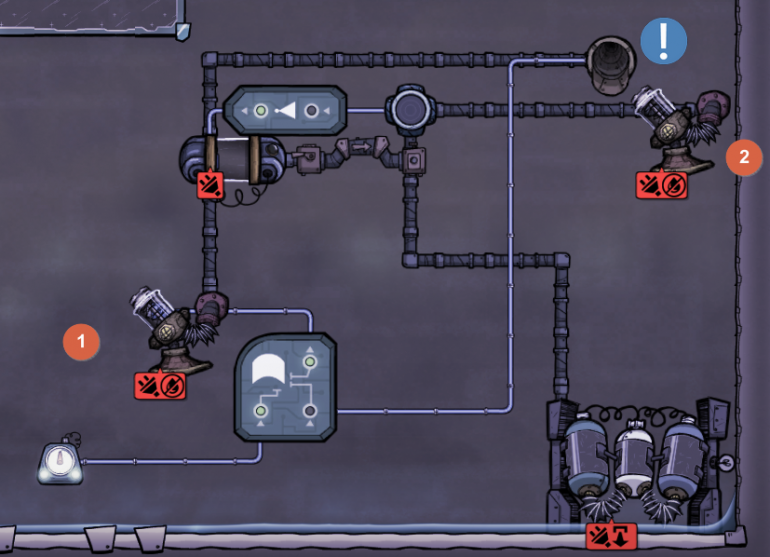

Its a simplified representation of my system

1. The water from pump 1 is transfered to sieve. At a regular basis pump 1 is controlled by clock. It is not running all the time.

2. From time to time i want to use hotter water in the sieve. As pump 1 has low temperature, water coming from pump 2 has high priority. So if liquid pipe element sensor detects a water coming from pump 2, then the shut off is closed, preventing water from pump 1.

The liquid bridge is to prevent water from pump 2 entering pipes other than towards the sieve.

3. OR gate controls emergency. If automation calls for emergency water (blue exclamation point) then the OR gate tells pump 1 to overwrite signals from the step 1. and run as long as the emergency signal lasts.

Issue: How to tell the shutoff in the system to turn off (block water going to sieve) when the emergency signal from step 3. is detected, regardless of the signal coming from liquid pipe element sensor?



[Prince Mandor]

Same OR gate between NOT and Element Sensor

[Sheo]

Afaik  active signal always overwrites inactive, so simply connect emergency signal to pump. Set a xor gate between emergency and pipe sensor to shutoff

[Sevio]

@Parusoid This isn't exactly an answer to your automation question, but it does address the original problem you were trying to solve with it.

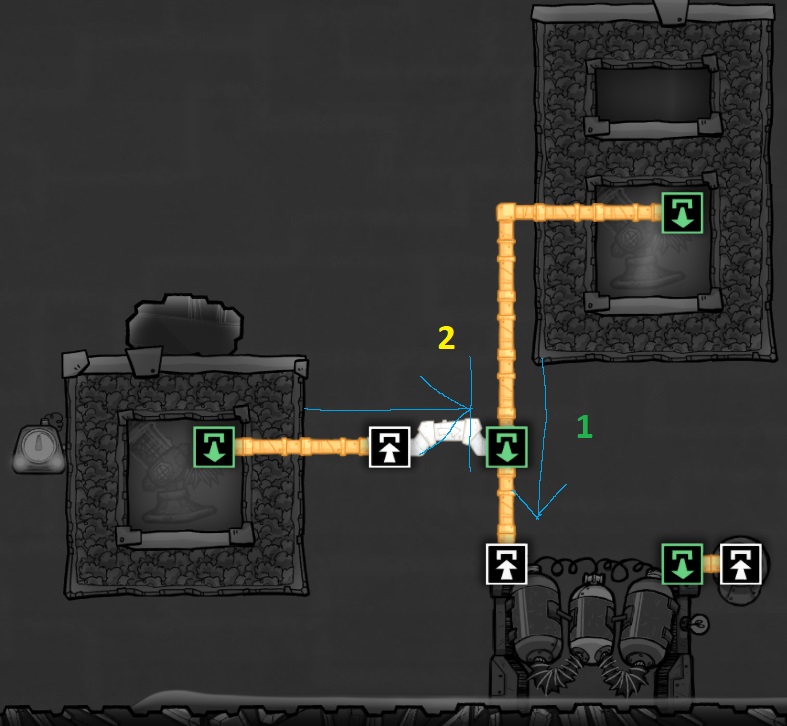

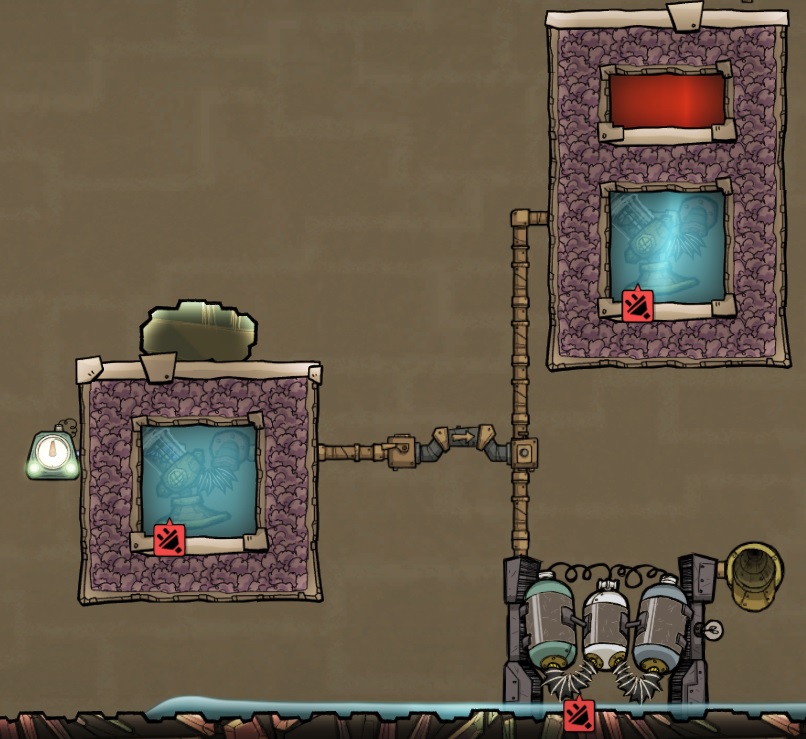

You want your Water Sieve to take hot water first, cold water second. You can use Liquid Bridges to prioritize liquid flows, because a liquid bridge's output on a straight pipe takes a lower priority than water coming through the straight pipe.

So in short, there's no need for the liquid shutoff and the bridge you have placed in the example will already make sure hot water goes first.

[Prince Mandor]

7 minutes ago, Sheo said:

Afaik  active signal always overwrites inactive, so simply connect emergency signal to pump. Set a xor gate between emergency and pipe sensor to shutoff

There may be backlash problem, Gates allow sygnal only one way. If you just use automation wires as improvised OR gate, it works perfectly if you have just two input sygnals, but if you have multiple sygnals and multiple Gates it can, sometimes, break logic of scheme.



And XOR gate is not solution - it depends on second sygnal, not override it

[Sheo]

Sry forget about my post, got logical thinking errors before sending xD



But u could build a another shutoff getting signal from emergeny call, water enters first shuttoff but moves to second if theres no emergency, second one just as u showed connected to pipe sensor

[Yunru]

For the original question, two not gates. If you wire your override into the second not gate, it doesn't matter what the first not gate's saying.

[Sheo]

Emergency - not - and (in 1st)

pipe sensor - not - and (in 2nd)

and out - shutoff

emergency - pump

should work?

[ZanthraSW]

Using Boolean Algebra you can work out an equation. https://en.wikipedia.org/wiki/Boolean_algebra

Element sensor = A

Emergency sensor = B

Output to liquid shutoff = O

Truth Table as desired:

+---+---+---+
| A | B | O |
+---+---+---+
| 0 | 0 | 1 |
| 0 | 1 | 0 |
| 1 | 0 | 0 |
| 1 | 1 | 0 |
+---+---+---+

Since there is only one combination that has a state you want the output active for, it's simply:

O = (NOT A) AND (NOT B)

So a NOT gate for A and a NOT gate for B, fed into an AND gate to the output.

But with De Morgan's laws you can simplify it: https://en.wikipedia.org/wiki/De_Morgan's_laws

O = NOT (A OR B)

So an OR gate with A and B as input, followed by a NOT gate to invert it.
