Arash70 Posted January 25, 2018 Share Posted January 25, 2018 So I've been struggling with this for hours I need an automation circuit that can provide: 1,0,0 0,1,0 0,0,1 I've made a 2 row (which works great) but no matter how hard I try, I can't seem to find a way for 3 row switch. Link to comment Share on other sites More sharing options...
blash365 Posted January 25, 2018 Share Posted January 25, 2018 My guess is, that since logic is binary, you can only work with exponentials with base 2. (1, 2, 4, 8, etc). You will end up with more states than 3 in the end. To aggregate 3 states out of them, you will have to group them into 3 even groups, which is first possible with 8196 states (=2^13). In other words: better stick to clean binary numbers (4). Link to comment Share on other sites More sharing options...
donutman07 Posted January 25, 2018 Share Posted January 25, 2018 3 D flip flops in a loop, clock input is a switch you can manually toggle, just have to prime the input with 1 'cycle' on value, 2 'cycles' off values. the outputs of the 3 D flip flops would be the 3 values you seek. anyways something like that Link to comment Share on other sites More sharing options...
Arash70 Posted January 25, 2018 Author Share Posted January 25, 2018 31 minutes ago, donutman07 said: 3 D flip flops in a loop, clock input is a switch you can manually toggle, just have to prime the input with 1 'cycle' on value, 2 'cycles' off values. the outputs of the 3 D flip flops would be the 3 values you seek. anyways something like that Doesn't work in the game It definitely needs 3 different inputs though. I am thinking the output delays can make 3 different inputs P -> 2 seconds (1+1) Q -> 4 seconds (2+2) R -> 8 seconds (4+4) Gotta go back to the discrete math book I guess Link to comment Share on other sites More sharing options...

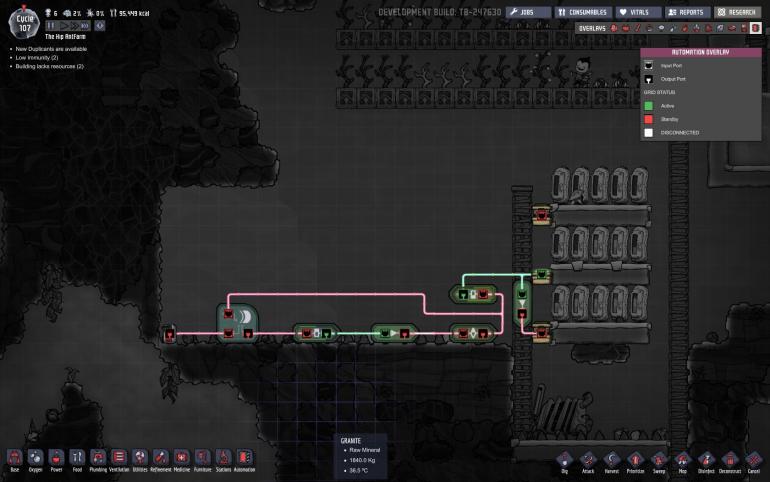

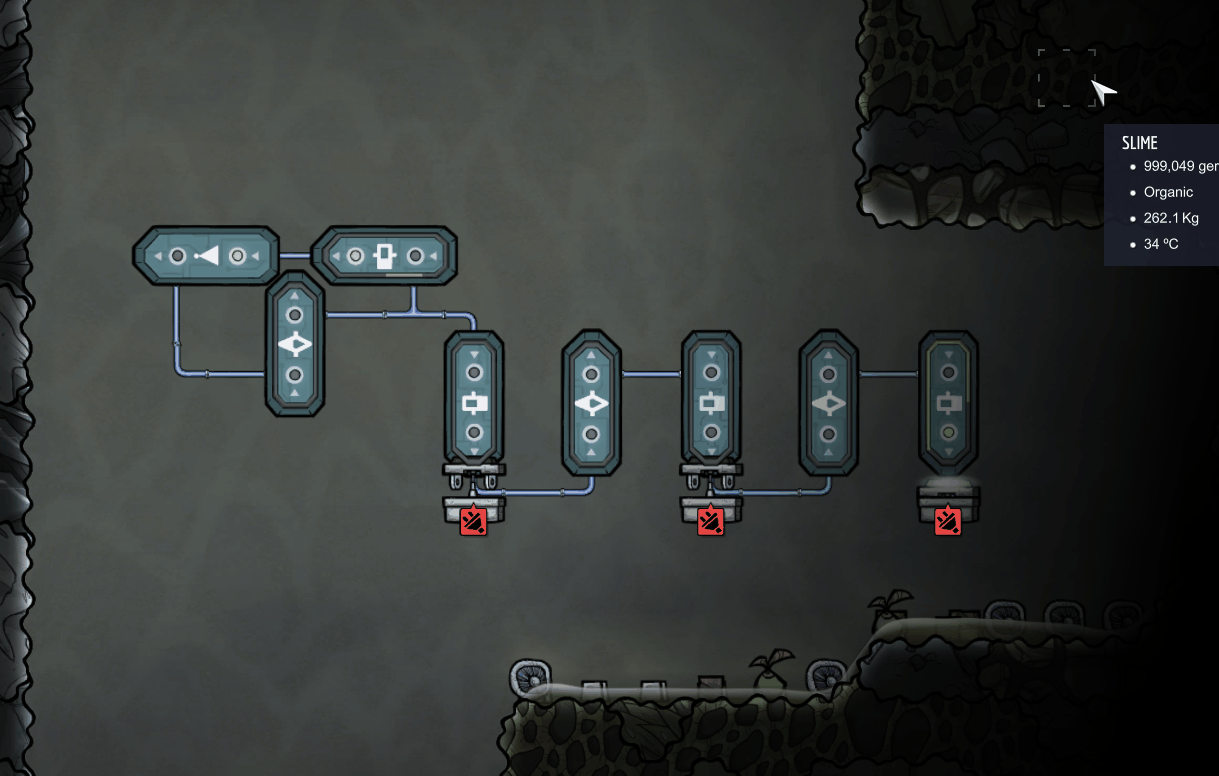

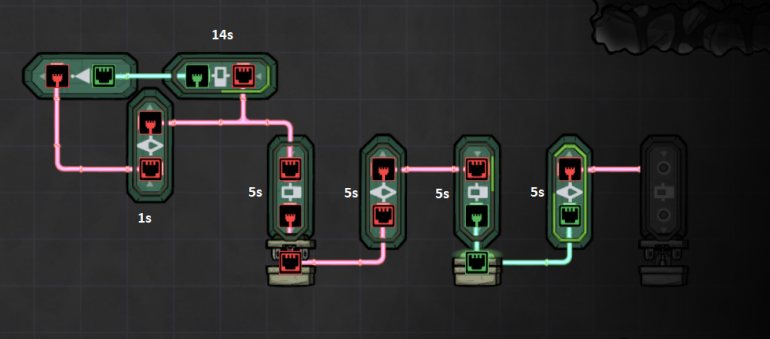

Moggles Posted January 25, 2018 Share Posted January 25, 2018 Are you looking for it to cycle through those three states? This will work if that is the case. Sorry if I got that wrong though. It looks that way judging by the buffers and loop backs. Link to comment Share on other sites More sharing options...
Arash70 Posted January 25, 2018 Author Share Posted January 25, 2018 4 minutes ago, Moggles said: Are you looking for it to cycle through those three states? This will work if that is the case. Sorry if I got that wrong though. It looks that way judging by the buffers and loop backs. Thats amazing, thanks Link to comment Share on other sites More sharing options...
