Spriter issues

[Cunning fox]

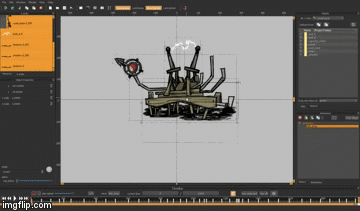

I'm trying to amm new construction to the game. It should look like this:

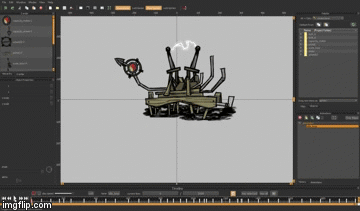

But it looks like this:

What am I doing wrong? My myprefab.lua is here:

require "prefabutil"
require "recipe"
require "modutil"

local assets=
{
    Asset("ANIM", "anim/generator.zip"),
    Asset("ATLAS", "images/inventoryimages/generator.xml"),
    Asset("IMAGE", "images/inventoryimages/generator.tex"),
}

local function fn()
    local inst = CreateEntity()
    inst.entity:AddTransform()
    inst.entity:AddAnimState()
    inst.entity:AddSoundEmitter()
    inst.entity:AddMiniMapEntity()
    inst.entity:AddNetwork()

    MakeObstaclePhysics(inst, 1)

    inst:AddTag("structure")

    local minimap = inst.entity:AddMiniMapEntity()
    minimap:SetIcon( "generator.tex" )

    inst.AnimState:SetBank("generator")
    inst.AnimState:SetBuild("generator")
    inst.AnimState:PlayAnimation("idle_loop", true)

    if not TheWorld.ismastersim then
        return inst
    end

    STRINGS.CHARACTERS.GENERIC.DESCRIBE.GENERATOR = "It's a custom prefab!" --Examine

    inst:AddComponent("inspectable")
    inst:AddComponent("workable")

    return inst
end

return Prefab( "common/generator", fn, assets, prefabs),
    MakePlacer( "common/generator_placer", "generator", "generator", "idle_loop" )



Edited December 27, 2016 by makar5000

[halfrose]

oh I had my fair share of this happening to me, it is nothing to do with lua, it is spriter, when you animate a symbol in spriter, deleting it from the animation doesn't hide them when the compiler compiles the animation, I honestly don't know why

but the best thing you can do to fix that is maybe make a fully transparent symbol to replace the ones you want to be invisible, or hide it behind all the other symbols.

[Cunning fox]

5 minutes ago, halfrose said:

oh I had my fair share of this happening to me, it is nothing to do with lua, it is spriter, when you animate a symbol in spriter, deleting it from the animation doesn't hide them when the compiler compiles the animation, I honestly don't know why

but the best thing you can do to fix that is maybe make a fully transparent symbol to replace the ones you want to be invisible, or hide it behind all the other symbols.

Okay, I'll try. Thx

[Cunning fox]

28 minutes ago, halfrose said:

oh I had my fair share of this happening to me, it is nothing to do with lua, it is spriter, when you animate a symbol in spriter, deleting it from the animation doesn't hide them when the compiler compiles the animation, I honestly don't know why

but the best thing you can do to fix that is maybe make a fully transparent symbol to replace the ones you want to be invisible, or hide it behind all the other symbols.

One more question about spriter. I've got my animation, but I want to increase size of it/move it. How to make it?

[halfrose]

1 minute ago, makar5000 said:

One more question about spriter. I've got my animation, but I want to increase size of it/move it. How to make it?

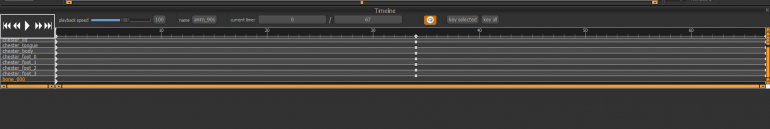

Click on the second set of numbers on the timeline

select the length and click apply length

It will look the same length however, hover your mouse over the timeline bar, hold Ctrl and use your mouse wheel and it will reveal the rest of the timeline

[Cunning fox]

2 minutes ago, halfrose said:

Click on the second set of numbers on the timeline

select the length and click apply length

It will look the same length however, hover your mouse over the timeline bar, hold Ctrl and use your mouse wheel and it will reveal the rest of the timeline

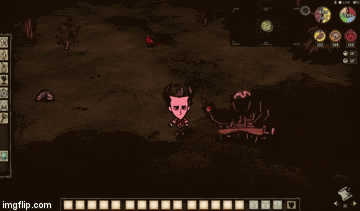

No, no. I'm talking about moving images in animation. I want to moove it to the left, but it looks like this:

How to avoid it?

[halfrose]

2 minutes ago, makar5000 said:

No, no. I'm talking about moving images in animation. I want to moove it to the left, but it looks like this:

How to avoid it?

Oh boy, that is a bit tricky, with the free version you cannot move the center point, now, a trick you can do is to create a bone.

1 create a bone by holding alt, clicking and dragging.

2 selecting the bone, go to Edit tab and select 'Copy'

3 again in the Edit tab select, 'Paste to all Keys'. This will add the bone to every key,

4 now you will want to lick on the edge of the timeline tab and drag it up, showing all the layers and delete the keys of the bone except the first.

5 Select the bone you created, press and hold B on your keyboard and start clicking on the symbol/sprites. That will link the sprites to the bone.

6 once all of them are selected, move the bone position and it should move the entire animation. Once you are done you can delete the bone.
