Can-Bus line automation

[Base Manager]

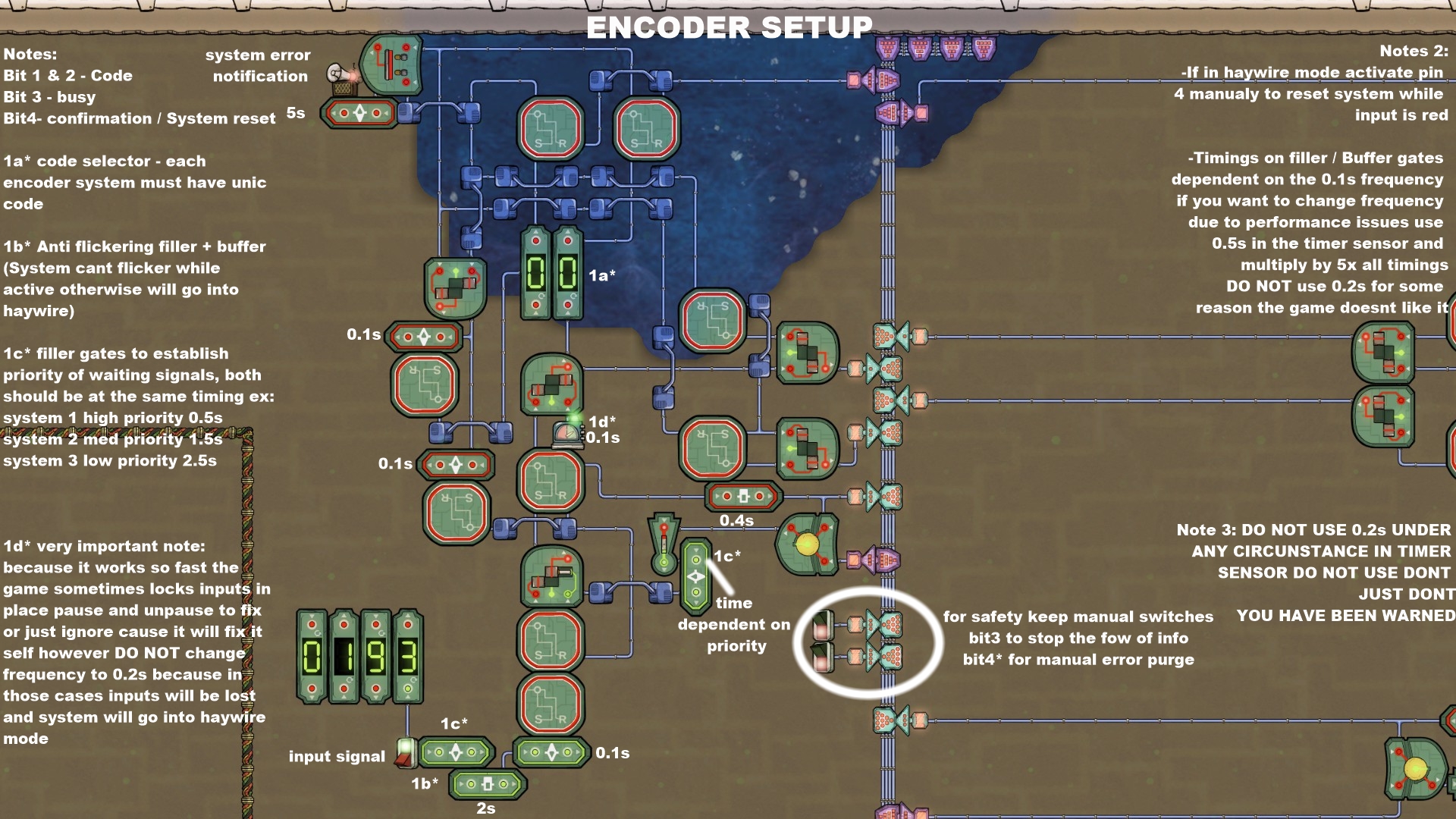

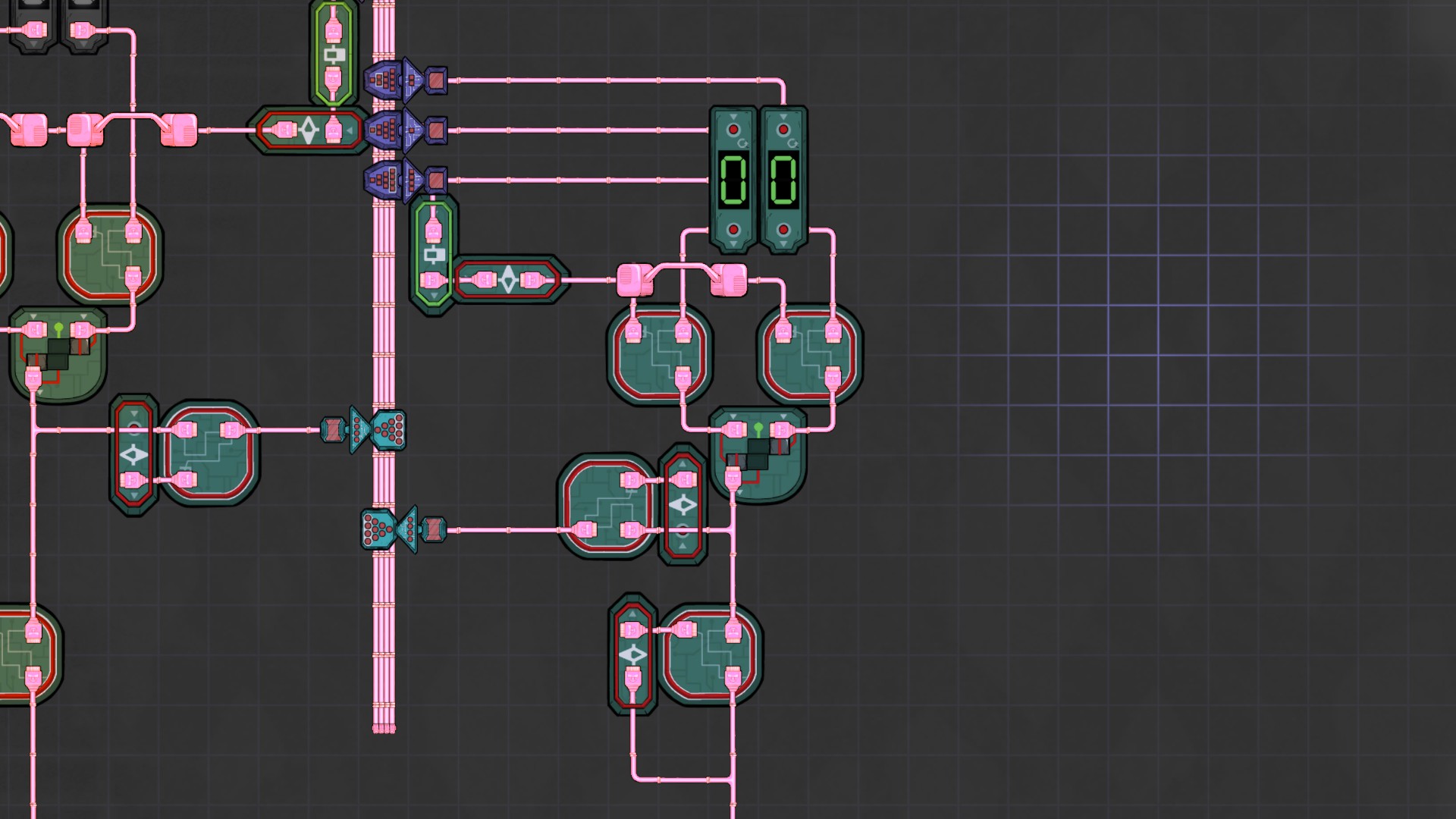

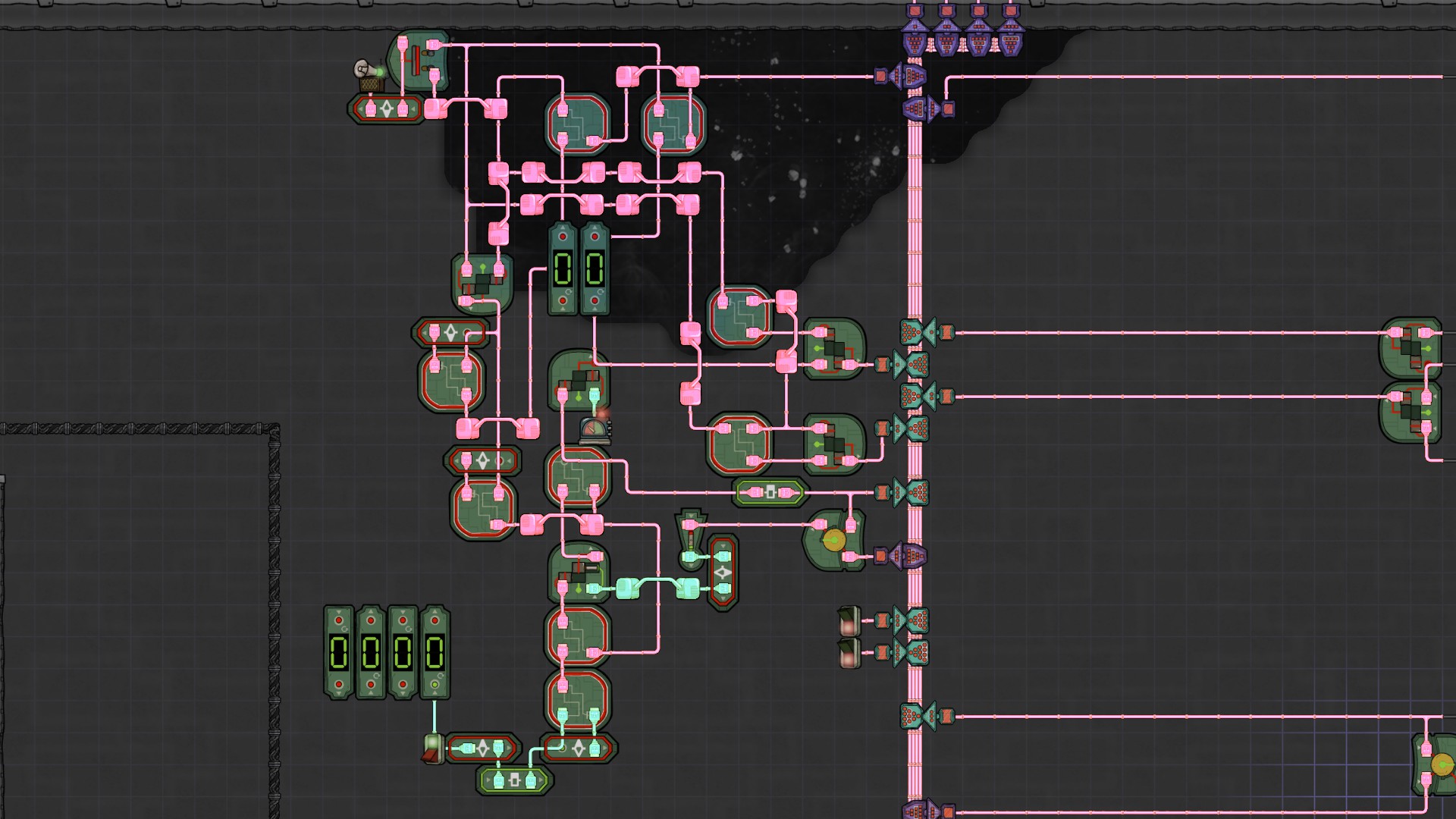

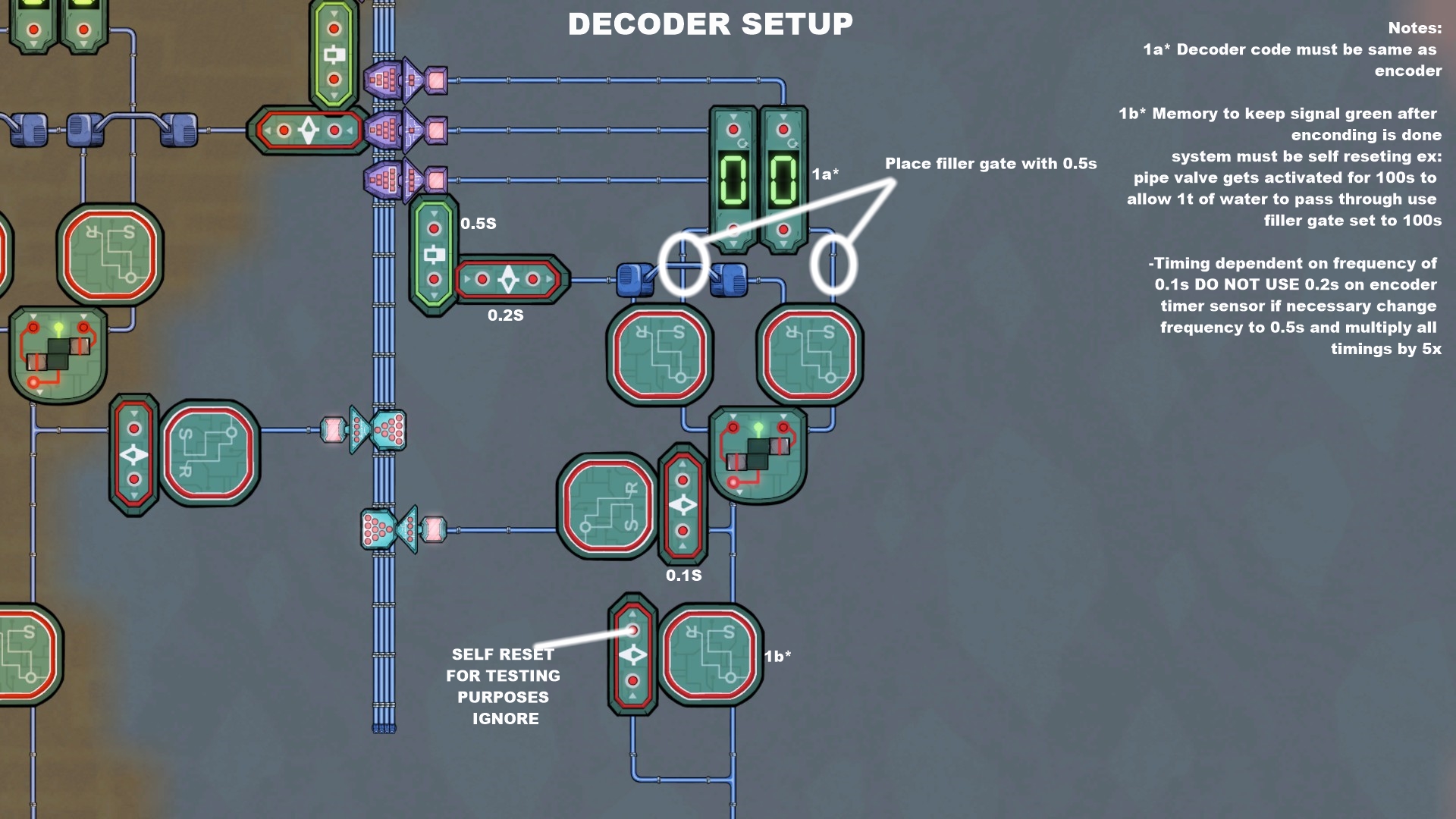

Inspired by the can-bus lines used in the automotive industry i bring to you 2 setups that will alow all of your systems to write info into the same ribon, the ideia is, you have a frequency generator in the form of a and gate+ a timer sensor going at 0.1s, and then have the nº of pulses counted in order to create a specific code, this code will be writen into bit 1 and 2  by the encoder setup and then, read on the other side by the decoder setup that counts the pulses in a specific bit and should the code be read it will emit a constant signal, the idea is to have the constant sigal from the sensor(analog) transformed into frequency(digital) this way, should you have enough space, you can connect all your systems in all of your planets into a single ribon alowing for example a powerplant at the bottom of your base to comunicate to the gas planet. Below i provide you some images to help you set this up.

I did my best to try and explain this in a video.

Hopefully this will help someone deal with the spaghetti monster
