QuickShot010 Posted December 5, 2014 Share Posted December 5, 2014 Hey, i am working again on my mod Drok the Caveman, but i am running into a problem. I currently am making a spear you can throw. But it won't show when you have it equiped. The inventory image and ground textures are working fine, just the equiped item won't show. Removed. This is the prefab lua for the throwing spear:local assets={ Asset("ANIM", "anim/javelin.zip"), Asset("ANIM", "anim/swap_javelin.zip"), Asset("ATLAS", "images/inventoryimages/javelin.xml"), Asset("IMAGE", "images/inventoryimages/javelin.tex"),}local prefabs = {}local function fn(colour) local function OnEquip(inst, owner) owner.AnimState:OverrideSymbol("swap_object", "swap_javelin", "swap_javelin") owner.AnimState:Show("ARM_carry") owner.AnimState:Hide("ARM_normal") end local function OnUnequip(inst, owner) owner.AnimState:Hide("ARM_carry") owner.AnimState:Show("ARM_normal") end local inst = CreateEntity() local trans = inst.entity:AddTransform() local anim = inst.entity:AddAnimState() local sound = inst.entity:AddSoundEmitter() MakeInventoryPhysics(inst) anim:SetBank("javelin") anim:SetBuild("javelin") anim:PlayAnimation("idle") inst:AddComponent("inspectable") inst:AddComponent("inventoryitem") inst.components.inventoryitem.imagename = "javelin" inst.components.inventoryitem.atlasname = "images/inventoryimages/javelin.xml" inst:AddComponent("equippable") inst.components.equippable:SetOnEquip( OnEquip ) inst.components.equippable:SetOnUnequip( OnUnequip ) return instendSTRINGS.NAMES.JAVELIN = "Throwing Spear"STRINGS.CHARACTERS.DROK.DESCRIBE.JAVELIN = "Drok good hunt!"STRINGS.CHARACTERS.GENERIC.DESCRIBE.JAVELIN = "It's some sort of ancient throwing device."return Prefab("common/inventory/javelin", fn, assets, prefabs) Does anyone have a clue?Thanks Link to comment Share on other sites More sharing options...
DeathDisciple Posted December 5, 2014 Share Posted December 5, 2014 Nothing stands out, perhaps double check the spriter file directory structure/symbol names. Link to comment Share on other sites More sharing options...
QuickShot010 Posted December 5, 2014 Author Share Posted December 5, 2014 Nothing stands out, perhaps double check the spriter file directory structure/symbol names. Allright, this is my folder structure and names: exported javelin javelin javelin01 (holds the ground images and throwing images) javelinbroken01 (holds the broken parts images for when the tool is used) javelin.scml javelin.zip swap_javelin swap javelin swap_javelin.scml swap_javelin.zip javelin.png Hope you can help Link to comment Share on other sites More sharing options...
DeathDisciple Posted December 5, 2014 Share Posted December 5, 2014 Ahh, you need to have swap_javelin folder at the same level as scml file, then the held item image inside it, e.g. ->swap_javelin.scml->swap_javelin (dir) |-->javelin.png The directory name is the 3rd argument for OverrideSymbol (it gets translated into symbol name in intermediate files). It 'might' actually work if you leave it as is and use 'symbol0' as 3rd argument, but I'd suggest against it even if it happens to work, because it's 'undefined behavior'. Link to comment Share on other sites More sharing options...

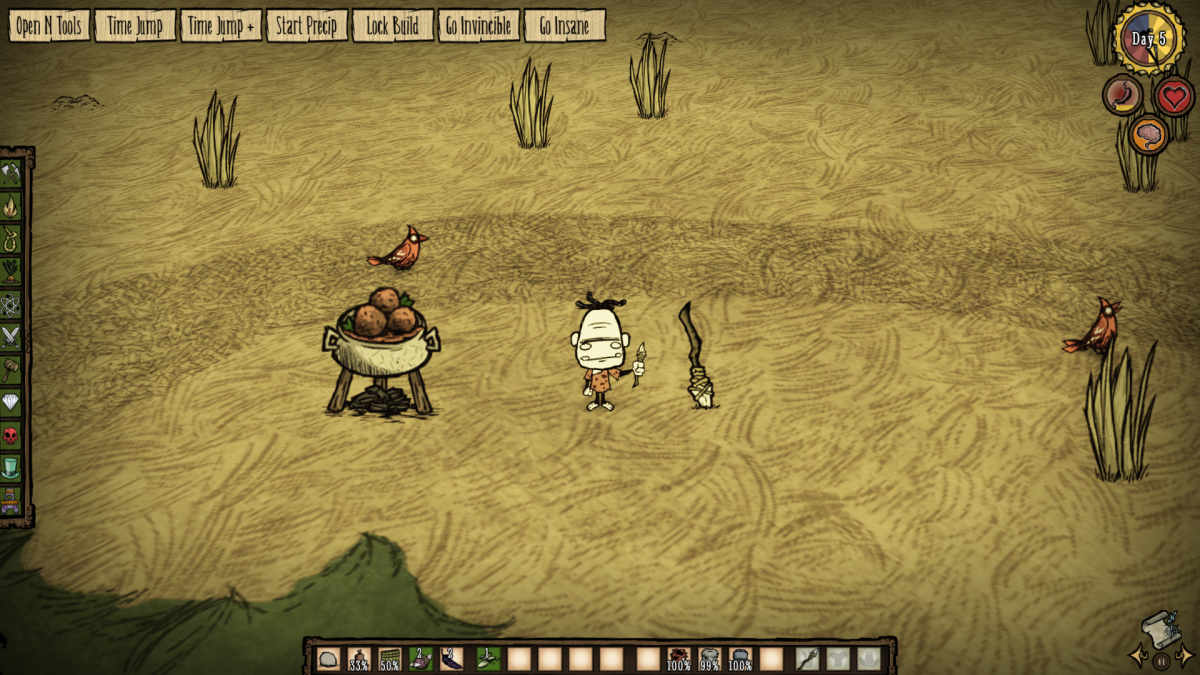

QuickShot010 Posted December 5, 2014 Author Share Posted December 5, 2014 Ahh, you need to have swap_javelin folder at the same level as scml file, then the held item image inside it, e.g. ->swap_javelin.scml->swap_javelin (dir) |-->javelin.png The directory name is the 3rd argument for OverrideSymbol (it gets translated into symbol name in intermediate files). It 'might' actually work if you leave it as is and use 'symbol0' as 3rd argument, but I'd suggest against it even if it happens to work, because it's 'undefined behavior'. Ah, we're making some progress. Now a new problem occurs. The pivot point is not correct in the game. But i did set the pivot point in spriter Do you have any idea what i did wrong?Thanks mate Link to comment Share on other sites More sharing options...

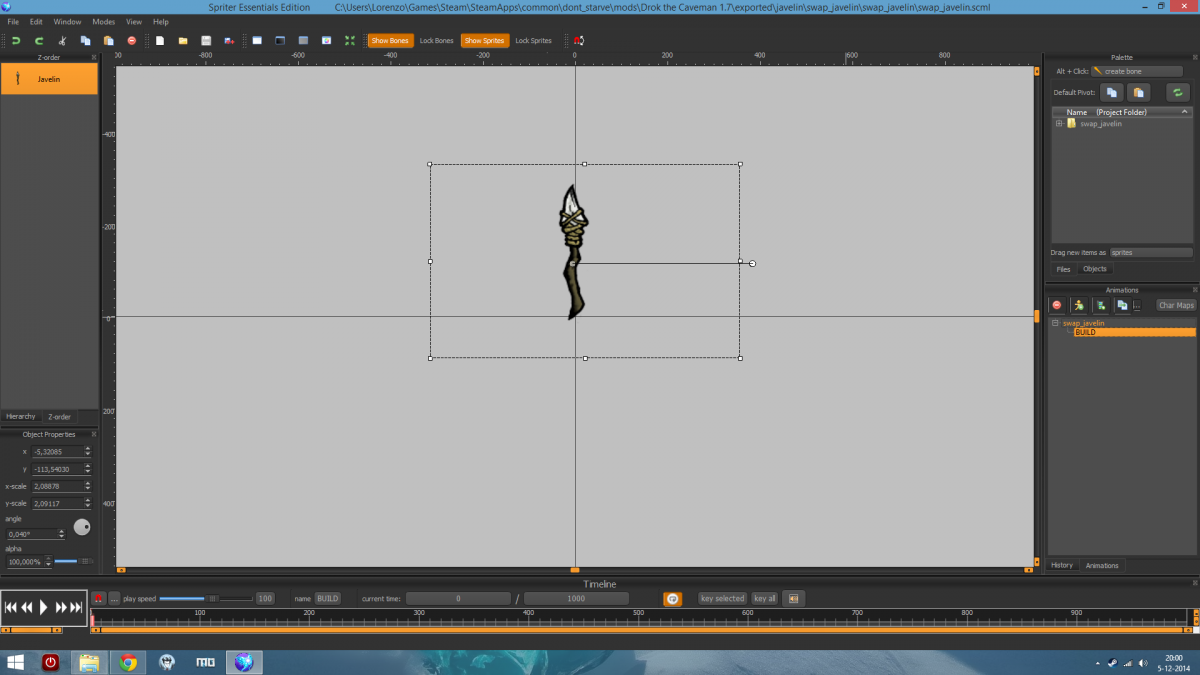

DeathDisciple Posted December 5, 2014 Share Posted December 5, 2014 That's odd... the game acts as if pivot is 0 0. Might be that spriter went silly, my typical approach is just opening the scml file in notepad++/sublime and checking manually if pivots are actually set properly - the pivots are in the same line as filenames at the very top of the file. Link to comment Share on other sites More sharing options...

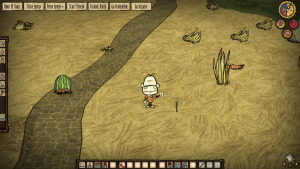

QuickShot010 Posted December 5, 2014 Author Share Posted December 5, 2014 That's odd... the game acts as if pivot is 0 0. Might be that spriter went silly, my typical approach is just opening the scml file in notepad++/sublime and checking manually if pivots are actually set properly - the pivots are in the same line as filenames at the very top of the file. Tried it but still doesn't work... Any last stands? Even scaling the spear in spriter doesnt seem to have an effect in the game Link to comment Share on other sites More sharing options...
DeathDisciple Posted December 5, 2014 Share Posted December 5, 2014 Scaling in spriter will not work because the animation is unused, just the symbol is (think of it as copy pasting your png on a particular slot of existing klei animation). Anyhow, I'm out of ideas, unless you want to upload the swap_javelin dir as a whole (or at least the spriter file), maybe it would tell me what could go wrong. It certainly shouldn't ignore pivot like that. Link to comment Share on other sites More sharing options...
QuickShot010 Posted December 5, 2014 Author Share Posted December 5, 2014 Scaling in spriter will not work because the animation is unused, just the symbol is (think of it as copy pasting your png on a particular slot of existing klei animation). Anyhow, I'm out of ideas, unless you want to upload the swap_javelin dir as a whole (or at least the spriter file), maybe it would tell me what could go wrong. It certainly shouldn't ignore pivot like that. Allright, here comes the swap_javelin file! exported.zip Hope you can help me out ^^ Link to comment Share on other sites More sharing options...
DeathDisciple Posted December 5, 2014 Share Posted December 5, 2014 Okay I get what happened - the pivot is set on the object not on the image. This is the part modtools are reading:<file id="0" name="swap_javelin/Javelin.png" width="320" height="200" pivot_x="0" pivot_y="1"/>the pivot set on keys is being ignored as far as builds are concerned. What it means to you is, set pivots by double clicking on the image file on the folder/file listing on the right side of spriter UI, instead of... well, wherever you set pivots on key/object level, I dunno. Try this (just scml file) swap_javelin.zip Link to comment Share on other sites More sharing options...
QuickShot010 Posted December 5, 2014 Author Share Posted December 5, 2014 Okay I get what happened - the pivot is set on the object not on the image. This is the part modtools are reading:<file id="0" name="swap_javelin/Javelin.png" width="320" height="200" pivot_x="0" pivot_y="1"/>the pivot set on keys is being ignored as far as builds are concerned. What it means to you is, set pivots by double clicking on the image file on the folder/file listing on the right side of spriter UI, instead of... well, wherever you set pivots on key/object level, I dunno. Try this (just scml file) swap_javelin.zip Allright, it worked. The only problem is that it's too small. Since scaling it in spriter won't work, do you have any ideas on how to scale it? Link to comment Share on other sites More sharing options...
DeathDisciple Posted December 5, 2014 Share Posted December 5, 2014 Uh the simplest way - just rescale the swap png? Just remember to reload/resave file in spriter after doing size changes or it will end up totally out of place. Link to comment Share on other sites More sharing options...
QuickShot010 Posted December 6, 2014 Author Share Posted December 6, 2014 Uh the simplest way - just rescale the swap png? Just remember to reload/resave file in spriter after doing size changes or it will end up totally out of place. Ah thanks, do you by any change happen to know how to make the projectile face the target? if i throw the spear to a target thats left, up, or down from the character it just seems odd because it has an animation that faces to the right. Any ideas? Link to comment Share on other sites More sharing options...
DeathDisciple Posted December 6, 2014 Share Posted December 6, 2014 I was wrestling with custom made projectile issues at one point, I ended up with the need to do inst.AnimState:SetOrientation( ANIM_ORIENTATION.OnGround )on projectile prefab/entity for my own projectiles to rotate proper and set the spriter animation to show as if throw from left to right. For some reason klei projectiles are misbehaving unless they use inst.AnimState:SetOrientation( ANIM_ORIENTATION.Default ), so I suspect there might be some animation flag, or a different way to do it too. Link to comment Share on other sites More sharing options...
QuickShot010 Posted December 6, 2014 Author Share Posted December 6, 2014 I was wrestling with custom made projectile issues at one point, I ended up with the need to do inst.AnimState:SetOrientation( ANIM_ORIENTATION.OnGround )on projectile prefab/entity for my own projectiles to rotate proper and set the spriter animation to show as if throw from left to right. For some reason klei projectiles are misbehaving unless they use inst.AnimState:SetOrientation( ANIM_ORIENTATION.Default ), so I suspect there might be some animation flag, or a different way to do it too. So what do you think is the best way to do it? It looks kinda odd if you throw the spear the wrong way around ahah! Link to comment Share on other sites More sharing options...
DeathDisciple Posted December 6, 2014 Share Posted December 6, 2014 My projectiles are separate entities from weapons firing them, but it should still apply to normal thrown weapons, I suppose try puttinginst.AnimState:SetOrientation( ANIM_ORIENTATION.OnGround ) somewhere in OnThrow function, and see how it behaves? Depending on what you are doing on hit, you may need to reset it to Default in OnHit/Miss tho. Link to comment Share on other sites More sharing options...
QuickShot010 Posted December 6, 2014 Author Share Posted December 6, 2014 My projectiles are separate entities from weapons firing them, but it should still apply to normal thrown weapons, I suppose try puttinginst.AnimState:SetOrientation( ANIM_ORIENTATION.OnGround ) somewhere in OnThrow function, and see how it behaves? Depending on what you are doing on hit, you may need to reset it to Default in OnHit/Miss tho. I got it working, it looks a little bit weird. The spear is off target when it hits.Maybe i can tweak it in spriter to make it look a bit better? Any ideas? Thanks mate! Or maybe there is another inst.AnimState:SetOrientation that orientates to the target without being a texture on the ground? Link to comment Share on other sites More sharing options...
DeathDisciple Posted December 6, 2014 Share Posted December 6, 2014 according to constants.luaANIM_ORIENTATION ={ Default = 0, OnGround = 1,}0 won't make it rotate at all, as you saw... I just tweak it in spriter until I'm satisfied with results, I don't know of a better option. Link to comment Share on other sites More sharing options...
QuickShot010 Posted December 6, 2014 Author Share Posted December 6, 2014 according to constants.luaANIM_ORIENTATION ={ Default = 0, OnGround = 1,}0 won't make it rotate at all, as you saw... I just tweak it in spriter until I'm satisfied with results, I don't know of a better option. Thank you! It doesnt really look weird anymore, i just tweak the speed a bit it looks fine now! Do you happen to know how to make the projectile go back to the idle animation when you missed? Right now when you miss with the spear it goes on forever so you cant pick it up again. This is the code i have for the missing part: local function OnMiss(inst, owner, target) inst.AnimState:PlayAnimation("idle", true) inst.AnimState:SetOrientation( ANIM_ORIENTATION.Default ) end inst.components.projectile:SetHoming(false) inst.components.projectile:SetOnMissFn(OnMiss)Thanks again Link to comment Share on other sites More sharing options...
DeathDisciple Posted December 6, 2014 Share Posted December 6, 2014 Yeah infinite range is default behavior I think, wouldinst.components.projectile:SetRange(30)or something like that help? Link to comment Share on other sites More sharing options...
QuickShot010 Posted December 6, 2014 Author Share Posted December 6, 2014 Yeah infinite range is default behavior I think, wouldinst.components.projectile:SetRange(30)or something like that help? Allright, now it will play the idle animation but it still continues to move...Any more ideas? Thanks! Link to comment Share on other sites More sharing options...
DeathDisciple Posted December 6, 2014 Share Posted December 6, 2014 Hmm... try addinginst.Physics:Stop()into OnMiss() function Link to comment Share on other sites More sharing options...
QuickShot010 Posted December 6, 2014 Author Share Posted December 6, 2014 Hmm... try addinginst.Physics:Stop()into OnMiss() function It worked! The only weird thing now is that the idle animation doesnt really fit when you miss, maybe i'll add a missed animation in which the spear just bounces of the ground or something. ^^ I'll keep you up to date on the progress Link to comment Share on other sites More sharing options...
QuickShot010 Posted December 6, 2014 Author Share Posted December 6, 2014 Hmm... try addinginst.Physics:Stop()into OnMiss() function I made an animation that looks better, it now bounces of the ground. But the problem is that the bounce repeats itself while it has to just lay there. Maybe i must create a second animation (missed_idle) or something and flush the animation after the miss animation? Also, when you pick up the missed spear and drop it again it also plays the missed animation. Can you help me again? Thanks Link to comment Share on other sites More sharing options...
Mobbstar Posted December 6, 2014 Share Posted December 6, 2014 I made an animation that looks better, it now bounces of the ground. But the problem is that the bounce repeats itself while it has to just lay there. Maybe i must create a second animation (missed_idle) or something and flush the animation after the miss animation? Also, when you pick up the missed spear and drop it again it also plays the missed animation. Can you help me again? Thanks Did you set the animation to loop on accident? (PlayAnimation("anim",true) or in spriter maybe, though I think the latter doesn't matter) Link to comment Share on other sites More sharing options...
