[Tutorial] Creating a "handslot-equippable-item" from scratch


Malacath
 Share

Recommended Posts

Preface:
This whole tutorial will lead you through the process of creating a "handslot-equippable-item", not including the creation of artwork. That means we will convert an inventoryimage, create a "ground"-animation and create a swappable build, that is when the player holds it in his hand. Why would you want to do this instead of the usual build-renaming of existing animations? Well, this here is a thousand times more flexible and easier to troubleshoot because, honestly, everyone can make mistakes when using other peoples files as a basis. It also feels a lot less "hackish" than renaming the builds and the endproduct will be completely yours.
Also please keep in mind that when making your own mod you should always refrain from using generic names like I do in this tutorial. So do not use "myitem"!
Currently the full tutorial works sadly only for Windows user as the *.tex/animation compiler Klei provides is not yet ported to Mac or Linux. For the relevant parts (I will mark these) you will have to push the mod to a Windows user and have them convert it.



0 Prerequisites
To successfuly finish this tutorial you will need:
-the "Don't Starve Mod Tools" which you can download from Steam

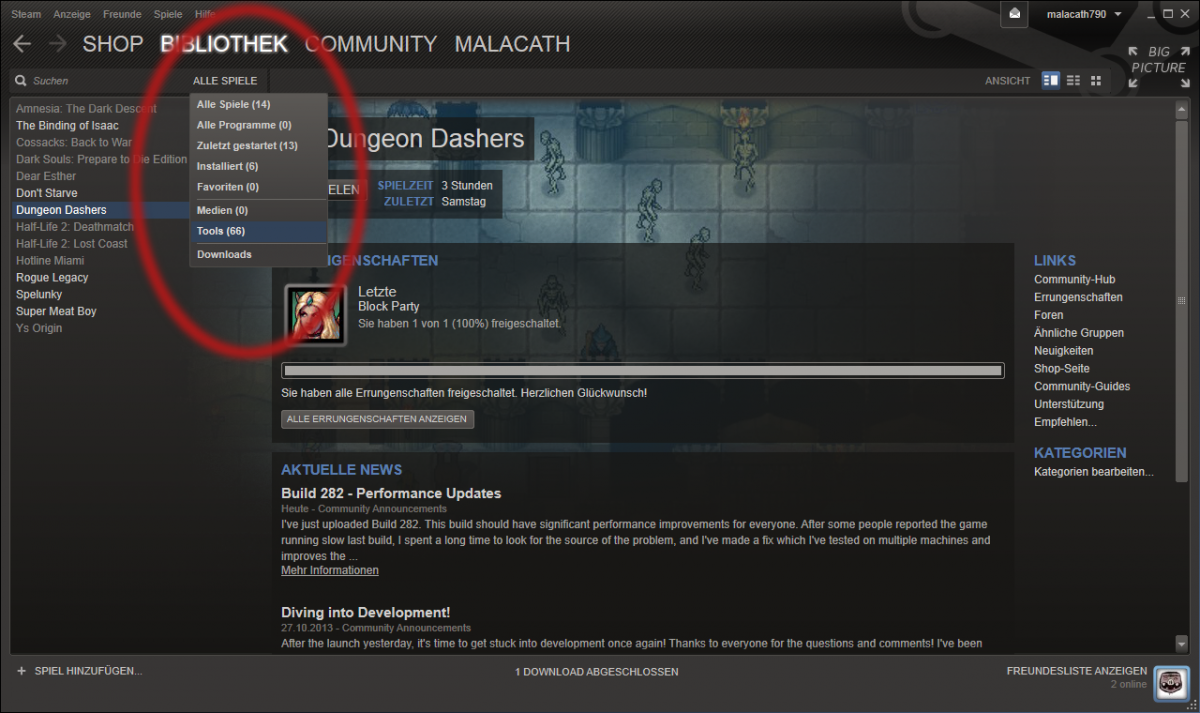

This is where you find a skillfully hidden dropdown menu to select "Tools" in Steam. Disregard the german  : P

post-245716-0-32928000-1384196602_thumb.


-image assets you want to use for your item

assets.zip

image courtesy to soul, please don't use these assets in your own mod if you intend to release it to the public, thank you ^^


-some patience
-maybe a drink (coffee or tea would be good)
-alternatevly some good music
-preferably a bit of knowledge about "Don't Starve" modding



1 Setting up our mod
Let me assume that you already have your artwork in the form of an inventoryimage of size 64x64 pixels, an image you intend to use for the "ground"-animation and an image you intend to use for the swappable build all in the *.png format.
With those we aim for the following folder structure in our mod-folder

mymod        exported        |->        myitem                |->        ground_myitem                        |->        ground_myitem.png                        swap_myitem                        |->        swap_myitem                                |->        swap_myitem.png        images        |->        inventoryimages                |->        myitem.png        scripts        |->        prefabs                |->        myitem.lua        modmain.lua

You can in fact use more than one image to create your animations and get as complex as you want with your folder structure, but let us keep it basic while still maintaining a certain level of structure for the sake of this tutorial. If you ever work on something more complicated keep in mind that a good structure can be crucuial to a good workflow.
We will also want to set up our two necessary scripts "modmain.lua" and "myitem.lua". The first of these is easy to do

PrefabFiles = {    "myitem",}

If you already have other prefabs registered for your mod then you have to expand the table "PrefabFiles", you should neither create a new one nor override your old one. "myitem.lua" will be a totally generic "handslot-equippable-item" without any use for now. We can go back later and make it a tool, a weapon, a staff... anything you want to do with it basically.

local assets={    Asset("ANIM", "anim/myitem.zip"),    Asset("ANIM", "anim/swap_myitem.zip"),    Asset("ATLAS", "images/inventoryimages/myitem.xml"),    Asset("IMAGE", "images/inventoryimages/myitem.tex"),}prefabs = {}local function fn()    local function OnEquip(inst, owner)        owner.AnimState:OverrideSymbol("swap_object", "swap_myitem", "swap_myitem")        owner.AnimState:Show("ARM_carry")        owner.AnimState:Hide("ARM_normal")    end    local function OnUnequip(inst, owner)        owner.AnimState:Hide("ARM_carry")        owner.AnimState:Show("ARM_normal")    end    local inst = CreateEntity()    local trans = inst.entity:AddTransform()    local anim = inst.entity:AddAnimState()    local sound = inst.entity:AddSoundEmitter()    MakeInventoryPhysics(inst)        anim:SetBank("myitem")    anim:SetBuild("myitem")    anim:PlayAnimation("idle")    inst:AddComponent("inspectable")        inst:AddComponent("inventoryitem")    inst.components.inventoryitem.imagename = "myitem"    inst.components.inventoryitem.atlasname = "images/inventoryimages/myitem.xml"        inst:AddComponent("equippable")    inst.components.equippable:SetOnEquip( OnEquip )    inst.components.equippable:SetOnUnequip( OnUnequip )    return instendreturn  Prefab("common/inventory/myitem", fn, assets, prefabs)

Do not forget that all instances of "myitem" in these two scripts as well as all following appearances of it have to be replaced by whatever name you choose for your item.
Starting your game now will cause an error because the assets specified at the top are missing. Why? Of course because we did not create them yet. But we will fix that next.



2 Creating the inventoryimage
If you put your "myitem.png" file where I told you... then you are basically done. If you want to test it you will want to comment out lines 3-4 and 29-31 in "myitem.lua". Thus the file should look like this:

local assets={    --Asset("ANIM", "anim/myitem.zip"),    --Asset("ANIM", "anim/swap_myitem.zip"),    Asset("ATLAS", "images/inventoryimages/myitem.xml"),    Asset("IMAGE", "images/inventoryimages/myitem.tex"),}prefabs = {}local function fn()    local function OnEquip(inst, owner)        owner.AnimState:OverrideSymbol("swap_object", "swap_myitem", "swap_myitem")        owner.AnimState:Show("ARM_carry")        owner.AnimState:Hide("ARM_normal")    end    local function OnUnequip(inst, owner)        owner.AnimState:Hide("ARM_carry")        owner.AnimState:Show("ARM_normal")    end    local inst = CreateEntity()    local trans = inst.entity:AddTransform()    local anim = inst.entity:AddAnimState()    local sound = inst.entity:AddSoundEmitter()    MakeInventoryPhysics(inst)        --anim:SetBank("myitem")    --anim:SetBuild("myitem")    --anim:PlayAnimation("idle")    inst:AddComponent("inspectable")        inst:AddComponent("inventoryitem")    inst.components.inventoryitem.imagename = "myitem"    inst.components.inventoryitem.atlasname = "images/inventoryimages/myitem.xml"        inst:AddComponent("equippable")    inst.components.equippable:SetOnEquip( OnEquip )    inst.components.equippable:SetOnUnequip( OnUnequip )    return instendreturn  Prefab("common/inventory/myitem", fn, assets, prefabs)

Start the game and you should see a "cmd" window pop up. It will say some stuff and close itself and run "Don't Starve". Activate your mod, load/create a save, open the console and while having the cursor close to the player type

DebugSpawn("myitem")

and hit enter. Hit the spacebar to pick up your item (since it will be invisible you cannot use the mouse) and see the new inventoryimage in all its tiny glory. If you need you can close the log which overlays the screen by pressing "Ctrl"+"L"



If you are on Linux or Mac you can use simplex's program to convert your image to the "*.tex" format, for which you can find a thread here. Put the converted "myitem.tex" into "mymod/images/inventoryimages/" and create a simple text file next to it, change its name to "myitem.xml" and write the following content inside it

<Atlas>    <Texture filename="myitem.tex" />    <Elements>        <Element name="myitem.tex" u1="0" u2="1" v1="0" v2="1" />    </Elements></Atlas>

Note that you need to change the filetype here and I actually don't know if this functionality is hidden by default in Mac or Linux like it stupidly enough is in Windows, but I trust you know what you're doing.

Alternatevly you can give the mod to someone who has Windows and ask them to start the game once while it's enabled and give it back to you.



3 Creating the "ground"-animation
Now comes the stuff that makes this approach worthwhile. Start up "Spriter" via the "Mod Tools" through Steam or if you have it installed seperately you can use that as well (i.e. when you are on Mac or Linux). Choose "File"-"New Project" or "Ctrl-N" and navigate to your mods folder. Choose to create a new project in "mymod/exported/myitem/ground_myitem"

post-245716-0-44747800-1383746043_thumb.

The first thing you will want to do is change names. In the lower right corner you can see "entity_000" and "NewAnimation". Rename "entity_000" to "myitem", this will be the name of our bank (which is important while coding) Now rename "NewAnimation" to "idle", this will be... well... the name of our animation.

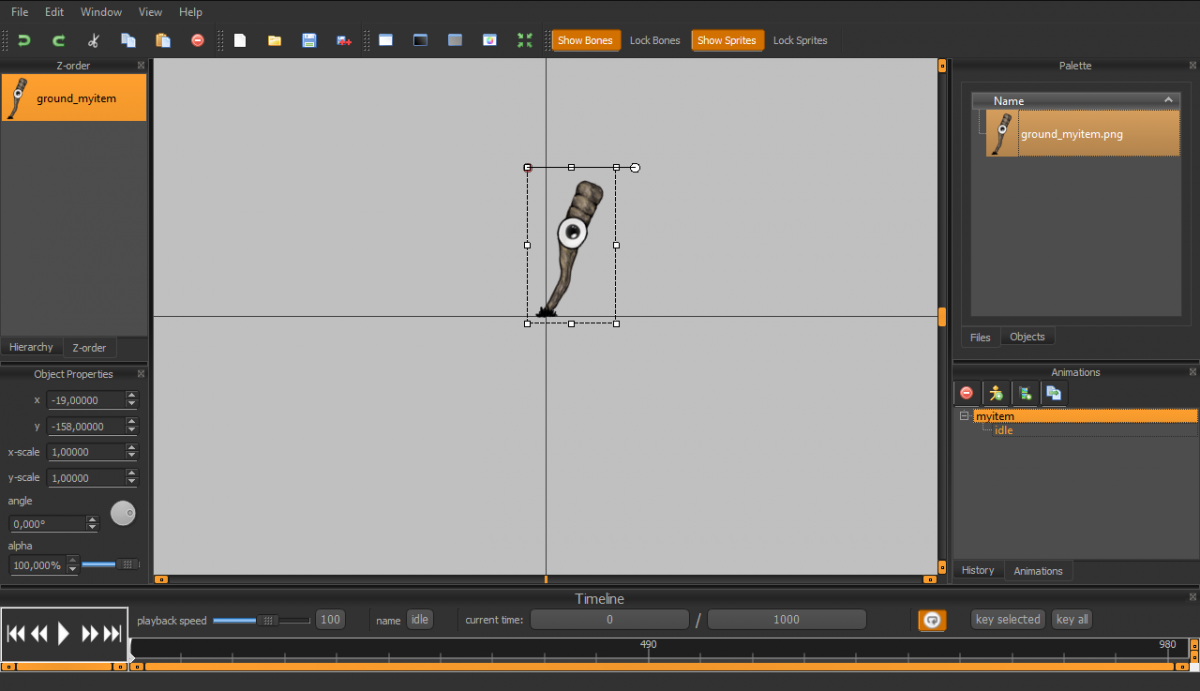

post-245716-0-13039300-1383746050_thumb.

You can add more animations by clicking the third button from the left above the name of the bank. But for this tutorial it will not be necessary. Now you need to add the image by "drag-and-dropping" the image in the top right corner of the window into the grey area in the middle. You can adjust its position simply by "drag-and-dropping" it again within that area. The cross can see in that area is the origin of your animation. That means that in "Don't Starve" this will be the point where your item makes contact with the ground and where the shadows and the collisions centers are (if you add those of course). So adjust the position of the image accordingly. Save that file as "myitem.scml", without the ".scml" this will be the name of our build.
Now get back to your prefabs file. Uncomment lines 3 and 29-31 if you commented them out earlier. When you run the game now you will see the "cmd" window again.

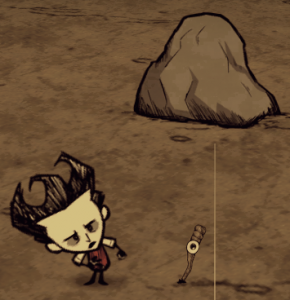

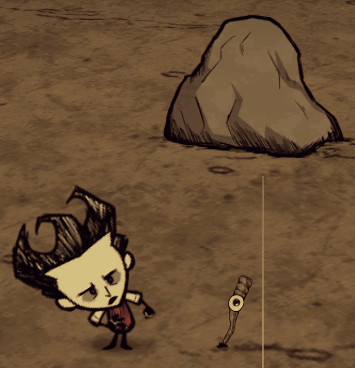

post-245716-0-20086700-1383746076_thumb.

This time it will say something about exporting animations and atlasing files, nothing we really care about though. Load a save and spawn the item like you did before (part 2) and it should now be visible. Take a few minutes to admire the beauty of your creation and then go on.
If you are on Linux or Mac there is currently no way of compiling the animation yourself. You will have to give the mod to a Windows user and have them run the game once and give the mod back to you.



4 Creating the swappable build
This part is very close to the last one, but you will have to look out for a few things. Create a new project in "Spriter" in the "mymod/exported/myitem/swap_myitem". Raname "entity_000" to "swap_myitem" and be careful about the name of the animation. We do not have a free choice here, in order to create a swappable build we need to name it "BUILD". Drag and drop the image into the grey area again.

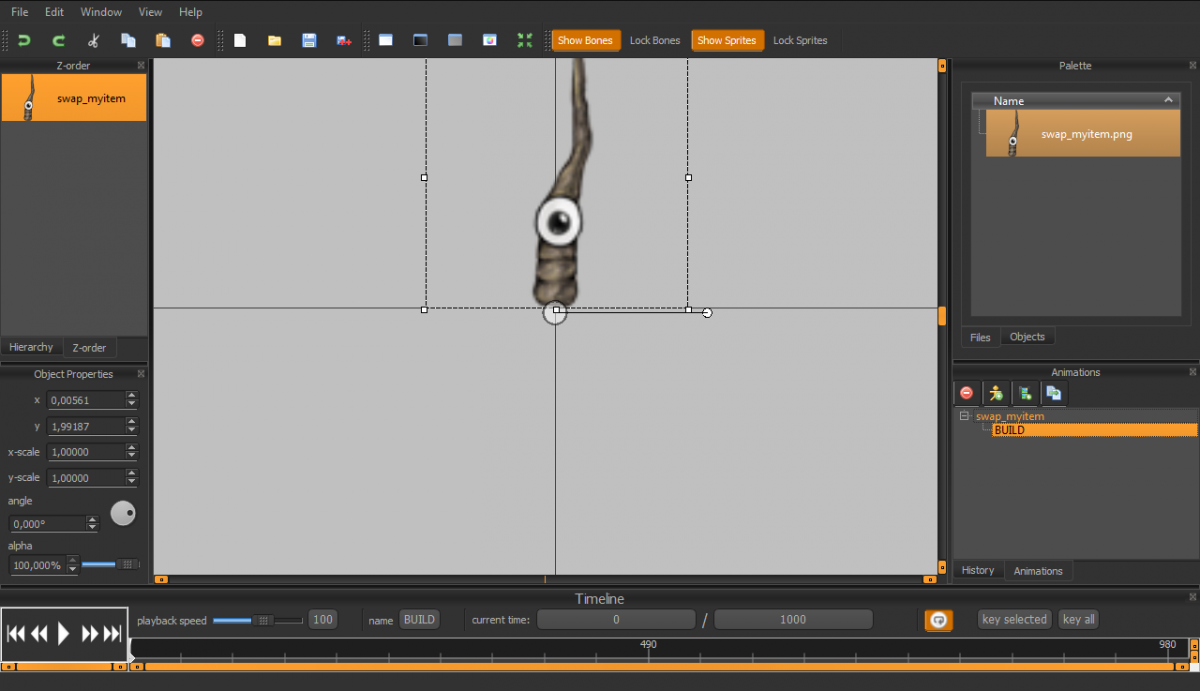

post-245716-0-79860500-1383746056_thumb.

For swappable builds we do not much care for the size, rotation or position of the image, instead you need to move the pivot, that is the red circle in the top left of the bounding box of the image we just dropped into the workspace. When you come close to it it will grow and you can drag and drop it. Wherever you put that pivot will be where the players fist grabbing the item will be. So you will want to move it to the handle of your item, for my example I have to move it a bit lower because the image is very small so that the fist could almost completely cover it. Now right-click on the pivot and choose "Overwrite default pivot". Save the file as "swap_myitem.scml". Note that the window popping up to save your file is very problematic for this task. You will need to write exactly "swap_myitem.scml" as the filename, if you skip the ".scml" part you will jump into the folder with the same name. Now uncomment line 4 in your prefabs file.

post-245716-0-36473900-1383746088_thumb.

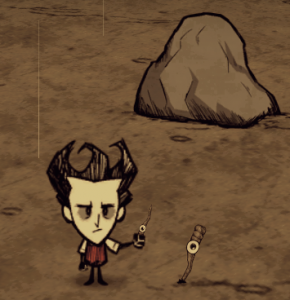

Start the game, watch the white text rush by, load a save, spawn the item and equip it. Lo and behold you have created your own "handslot-equippable-item" and it did not even take that long.
If you are on Linux or Mac there is currently no way of compiling the animation yourself. You will have to give the mod to a Windows user and have them run the game once and give the mod back to you.



5 Polishing and finishing up
The best part of this is how easy it is to polish your artwork now. You can simply edit your images in your favourite image editor and the "Mod Tools" will compile the animations/inventoryimage again. You can also tweak the animation files and have them compiled in the next startup of the game.







Spriter Example: Equippable Item

This is the finished product created by Cheerio using the assets uploaded with this post.







Confused? Curious? Feel free to post your questions here and pray that you will get a good answer  ^^

I might expand this tutorial at a later point in time, depending on what questions come up and if people want it. But for now I hope this will help, enjoy your cold coffee  : P
