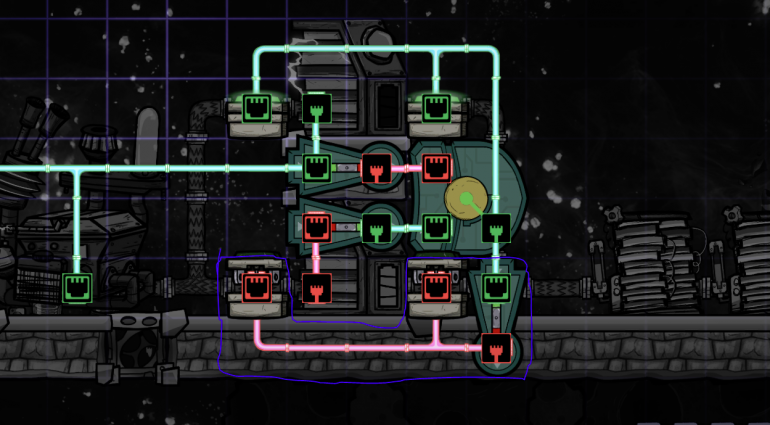

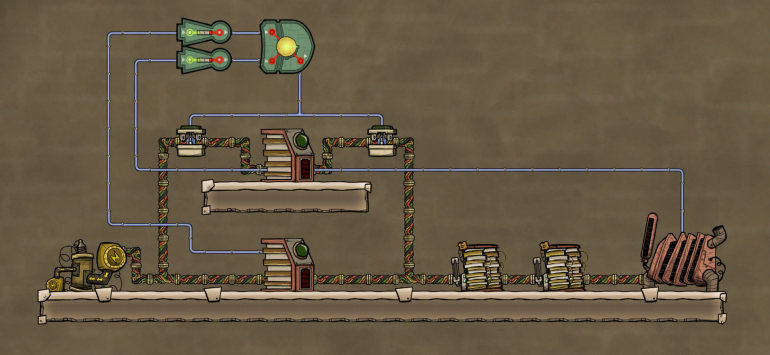

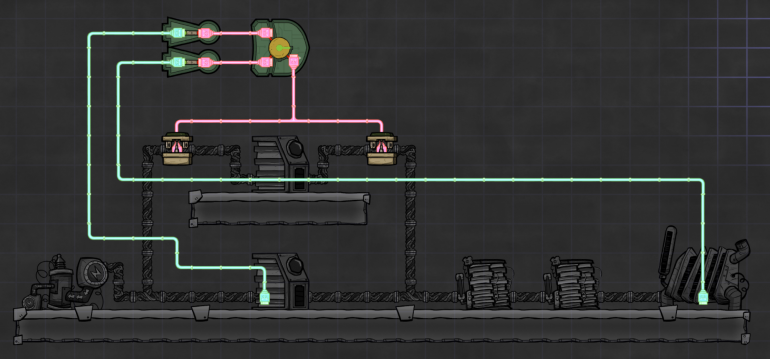

rumbleguts Posted June 25, 2020 Share Posted June 25, 2020 This has bothered me for quite awhile just never sat down to work it out. By the way this is by far the best game I have ever played never had a Game hook me so hard. But back to topic you know when charging Smart and Jumbo batteries together the jumbos only charge to half full annoying as hell, so have come up with a solution but there maybe someone else who has found this before me, but I can't find any circuit like this one. So using Sandbox mode put this together, layed it out this way for clarity, showing Automation connections and arrangement for the smart batteries. Some of the online circuits are way to complex or so crowded together as to be useless. Main points are Smart Batteries to be in parallel and Jumbos in series Power cutoffs to isolate the second Smart Battery an XOR gate and 2 NOT gates. This can be scaled up with more Jumbos to suit your needs. Tested in sandbox mode works fine. Short explanation as to how it works, Start all empty Smart 1 and Jumbos charge, Jumbos to half full, Logic changes at XOR output shutoff close, Smart 2 charges and Jumbos charge full, Logic changes again at XOR output, shutoffs open isolate Smart 2 disabling Generator, Smart 1 and Jumbos discharge Jumbos to half, Logic changed again at XOR output, cutoffs close Smart 2 discharges and the jumbos empty, Smart 2 enables Generator and we start again. Link to comment https://forums.kleientertainment.com/forums/topic/119488-charging-smart-and-jumbo-batteries-together/ Share on other sites More sharing options...
Angpaur Posted June 25, 2020 Share Posted June 25, 2020 1 hour ago, rumbleguts said: so crowded together as to be useless. Useless for what exactly? If it works then it is not useless. Link to comment https://forums.kleientertainment.com/forums/topic/119488-charging-smart-and-jumbo-batteries-together/#findComment-1347829 Share on other sites More sharing options...
stoeberhai Posted June 25, 2020 Share Posted June 25, 2020 If you don't want to "waste power" in the lower battery by charging it twice, add another pair of shutoffs with a NOT to the XOR and set both to 98-2. I like, that you can use this as a control unit in front of a huge battery cluster. Personally i never use jumbos though; i barely feel the need for having a huge amount of kJ's and the s-bat has only 1/5 leakage. It is also a bit more complicated to connect different types of generators with different threshold numbers to balance them out. Link to comment https://forums.kleientertainment.com/forums/topic/119488-charging-smart-and-jumbo-batteries-together/#findComment-1347866 Share on other sites More sharing options...
rumbleguts Posted June 26, 2020 Author Share Posted June 26, 2020 You can’t charge something that is already charged Link to comment https://forums.kleientertainment.com/forums/topic/119488-charging-smart-and-jumbo-batteries-together/#findComment-1348164 Share on other sites More sharing options...
stoeberhai Posted June 26, 2020 Share Posted June 26, 2020 Of course not; and that's not what i meant. Link to comment https://forums.kleientertainment.com/forums/topic/119488-charging-smart-and-jumbo-batteries-together/#findComment-1348255 Share on other sites More sharing options...
