Rickzzs Posted December 7, 2022 Share Posted December 7, 2022 (edited) https://steamcommunity.com/sharedfiles/filedetails/?id=2898572674 Current template doesn't contains all layers! Full layer list: Spoiler ARM_upper BEARD FX FX halo FX_fishing FX_liquid FX_splash FX_webber_wipe FX_wipe HAIR HAIR_HAT LANTERN_OVERLAY STRING SWAP_BODY SWAP_BODY_TALL SWAP_FACE SWAP_OBJECT Smear new arm_lower arm_lower_cuff arm_upper arm_upper_skin back_water balloon_red beard bell01 board boat_part boat_wheel_round boat_wheel_stick body book_closed book_cook book_open brick card cbell cheeks dark_burst01 dark_center dark_nightmare_fuel01 dark_spew dark_squigle dark_tendril_black dark_tendril_white drip_fx eel_body eel_eye eel_fin eel_head eel_tail emotefx eyes face face_monkeyparts fan01 fish01 fish_body fish_eye fish_fin fish_head fish_mouth fish_tail fishingline flower foot fx_bubb fx_droplet fx_hit fx_large fx_leap_phase fx_lunge_streak fx_spit fx_splat fx_star_part fx_wisp giftbox glow_2 hair hair_hat hairfront hairpigtails hand hand_idle_wormwood hand_wickerbottom headbase headbase_hat headbase_transform hit_2 horn01 hound_whistle01 lantern_overlay leg legs machine_rope_comp merm_hand meter meter_color2 page_flip pan_flute01 pig_arm pig_ear pig_head pig_leg pig_torso platform prop_carolbook prop_mug prop_poop prop_rope ray razor01 ripple_shadow rope_joints scale scale_loop scale_wrist shadow_ball shadow_hands shoal_body shoal_fin shoal_head skirt slackrope smol_bod smol_fin smol_fin_back smol_head smol_tail snap_fx snow spider_repellent spiralfx splash splash_pull splode sprk_1 sprks stab_fx superjump_groundcrack superjump_groundlift superjump_rubble1 superjump_rubble2 superjump_rubble3 superjump_smokering superjump_spear_fx superjump_speedline swap_bedroll swap_boat_hook swap_boat_net swap_body swap_body_tall swap_book_fx_over swap_book_fx_under swap_face swap_frozen swap_goo swap_goosplat swap_hat swap_item swap_item2 swap_object swap_object_bernie swap_pocket_scale_arrow swap_pocket_scale_body swap_shock_fx tail tear_fx torso torso_pelvis torso_transform warly_inhale_fx watchprop_idle water water_ripple_front water_shadow wendy_idle_flower wheel wheelshine whipline wood_splinter wooden_circles woodenarm wrap_paper wrap_string ww_head ww_limb ww_meathand ww_shadow ww_torso Full animation list: Spoiler player_acting player_actions player_actions_axe player_actions_blowdart player_actions_boomerang player_actions_bugnet player_actions_cannon player_actions_cowbell player_actions_eat player_actions_feast_eat player_actions_fishing player_actions_fishing_ocean player_actions_item player_actions_pickaxe player_actions_pocket_scale player_actions_reading player_actions_reversedeath player_actions_shovel player_actions_slingshot player_actions_uniqueitem player_actions_unsaddle player_actions_useitem player_actions_whip player_amulet_resurrect player_amulet_resurrect_werebeaver player_amulet_resurrect_weregoose player_attack_leap player_attack_prop player_attacks player_basic player_boat player_boat_channel player_boat_hook player_boat_jump player_boat_jumpheavy player_boat_plank player_boat_sink player_book_attack player_bow player_bush_hat player_cave_enter player_channel player_cointoss player_construct player_emote_extra player_emotes player_emotes_dance0 player_emotes_dance2 player_emotes_sit player_emotesxl player_encumbered player_encumbered_fast player_encumbered_jump player_frozen player_groggy player_hatdance player_hideseek player_hit_darkness player_hit_spike player_idles player_idles_groggy player_idles_lunacy player_idles_shiver player_idles_walter player_idles_wanda player_idles_warly player_idles_wathgrithr player_idles_waxwell player_idles_webber player_idles_wendy player_idles_wes player_idles_willow player_idles_winona player_idles_wolfgang_skinny player_idles_wonkey player_idles_woodie player_idles_wormwood player_idles_wortox player_idles_wurt player_idles_wx player_jump player_knockedout player_knockedout_wickerbottom player_lunge player_mighty_gym player_mime player_mime2 player_monkey_change player_monkey_run player_multithrust player_oar player_one_man_band player_pocketwatch_portal player_receive_gift player_revive_from_corpse player_sandstorm player_shock player_skin_change player_slurtle_armor player_spider_repellent player_spooked player_staff player_strum player_superjump player_teleport player_tiptoe player_tornado player_townportal player_transform_merm player_wardrobe player_wendy_commune player_wolfgang player_wolfgang_dumbbell player_woodie player_wormwood player_wormwood_fertilizer player_wrap_bundle wurt_peruse Edited January 1, 2023 by Rickzzs 3 3 Link to comment https://forums.kleientertainment.com/forums/topic/145085-new-character-animation-template/ Share on other sites More sharing options...
Rickzzs Posted December 7, 2022 Author Share Posted December 7, 2022 (edited) template.zip: original images template.centered.7z: image cropped to make the pivot centered. Recommended if you are creating a mod character based on this template. template.zip template_centered.zip Edited July 22, 2023 by Rickzzs Link to comment https://forums.kleientertainment.com/forums/topic/145085-new-character-animation-template/#findComment-1614030 Share on other sites More sharing options...
Rickzzs Posted December 9, 2022 Author Share Posted December 9, 2022 (edited) Preview: Edited January 1, 2023 by Rickzzs Link to comment https://forums.kleientertainment.com/forums/topic/145085-new-character-animation-template/#findComment-1614413 Share on other sites More sharing options...
lowercase skye Posted December 9, 2022 Share Posted December 9, 2022 Oh, thank you for working on this!! The existing template on the workshop's got some nasty germs all over it, so I've always wanted a new one. Seems like you're doing a great job!! <3 Link to comment https://forums.kleientertainment.com/forums/topic/145085-new-character-animation-template/#findComment-1614419 Share on other sites More sharing options...
Rickzzs Posted March 31, 2023 Author Share Posted March 31, 2023 (edited) New: ghost animation template. However, the ghost_HatCustom layer used by Maxwell is broken. This template only takes into account non-DLC character ghosts. DLC contents are not extracted and thus omitted. But this really doesn't matter. full layers: ghost_hairpigtails ghost_eyes ghost_HatCustom GHOST_HAT ghost_ears ghost_ears_lower ghost_tail ghost_FX ghost_body ghost_FX_HatCustom player_ghost.zip Edited April 9, 2023 by Rickzzs 1 Link to comment https://forums.kleientertainment.com/forums/topic/145085-new-character-animation-template/#findComment-1627708 Share on other sites More sharing options...
Rickzzs Posted June 1, 2023 Author Share Posted June 1, 2023 (edited) python 3 scripts that helps. 1.Make images transparent or not. Require ImageMagick. Hide these layers > python transparent.py swap_hat swap_body headbase_hat Show this layer > python transparent.py -r swap_hat ''' 图片透明 ''' import os import shutil import subprocess import sys def make_transparent(dir_path): if not os.path.exists(dir_path): print('Directory does not exist: ' + dir_path) return # create backup directory backup_dir = dir_path + '-old' if not os.path.exists(backup_dir): os.makedirs(backup_dir) # find all png files recursively png_files = [] for root, dirs, files in os.walk(dir_path): for file in files: if file.endswith('.png'): png_files.append(os.path.join(root, file)) # make each png file transparent and backup the original for png_file in png_files: basename = os.path.basename(png_file) backup_path = os.path.join(backup_dir, basename) shutil.copy2(png_file, backup_path) subprocess.call(['magick convert -alpha set -channel A -evaluate set 0% ', png_file, png_file]) def revert_dir(path): # get directory paths from command line arguments # find all backup files backup_dir = path + '-old' if not os.path.exists(backup_dir): print('Backup directory does not exist: ' + backup_dir) return backup_files = [] for root, dirs, files in os.walk(backup_dir): for file in files: backup_files.append(os.path.join(root, file)) # restore each backup file for backup_file in backup_files: basename = os.path.basename(backup_file) original_path = os.path.join(dir_path, basename) shutil.copy2(backup_file, original_path) # delete backup directory shutil.rmtree(backup_dir) if __name__ == '__main__': if len(sys.argv) < 2: print('Usage: transparent.py [-r] dir1 dir2 ...') sys.exit(1) revert = sys.argv[1] == '-r' if revert: dir_paths = sys.argv[2:] for dir_path in dir_paths: revert_dir(dir_path) else: # get directory paths from command line arguments dir_paths = sys.argv[1:] for dir_path in dir_paths: make_transparent(dir_path) 2. Mark red pivot. require python lib Pillow. Mark each image from a scml file with the image's pivot with a radius 4 red point > python mark.py player_acting.scml 4 """ 添加红点 """ from PIL import Image import numpy as np import xml.etree.ElementTree as ET import os import sys def mark(filename, radius=1): # Parse the .scml file tree = ET.parse(filename) root = tree.getroot() # Iterate through each file element for folder in root.iter("folder"): folder_name = folder.get("name") for file in folder.iter("file"): file_name = file.get("name") or "" file_path = os.path.join(os.path.dirname(filename), file_name).replace( "/", "\\" ) # Read the image file # Open the image file using Pillow try: img_pil = Image.open(file_path, formats=["PNG"]) if img_pil.mode != "RGBA": img_pil = img_pil.convert("RGBA") # Convert the image to a numpy array except IOError: print("Error: cannot read image file: " + file_path) continue img = np.array(img_pil) # Get pivot_x and pivot_y pivot_x = int(float(file.get("pivot_x") or 0) * img.shape[1]) pivot_y = int(float(file.get("pivot_y") or 0) * img.shape[0]) # Add a red pixel at the pivot point for i in range(-radius, radius): for j in range(-radius, radius): if i**2 + j**2 <= radius**2: try: img[pivot_y + j, pivot_x + i] = np.array([255, 0, 0, 255]) except IndexError: pass # Save the modified image img_pil = Image.fromarray(img, mode="RGBA") img_pil.save(file_path) if __name__ == "__main__": if len(sys.argv) < 2: print( "Usage: python mark.py [filename] [radius=1]\n Mark the pivot points of the Spriter project file (.scml)" ) sys.exit(1) filename = sys.argv[1] radius = len(sys.argv) > 2 and int(sys.argv[2]) or 1 mark(filename, radius) Edited June 5, 2023 by Rickzzs Link to comment https://forums.kleientertainment.com/forums/topic/145085-new-character-animation-template/#findComment-1637375 Share on other sites More sharing options...
Rickzzs Posted June 1, 2023 Author Share Posted June 1, 2023 (edited) 3. Crop Image After you've done with Photoshop and other tools. Crop images to save space. Crop a not totally transparent image and display which pivot it ends up > python crop.py hands/hands-0.png 0.1 0.9 And then you need to edit the pivot_x and pivot_y according to the result. from PIL import Image import sys def crop(filename, x, y, nosave=False): # open image img = Image.open(filename) # 获取图片的 alpha 通道 alpha = img.split()[-1] # 获取 alpha 通道中不透明的部分 bbox = alpha.getbbox() # 裁剪图片 img_cropped = img.crop(bbox) w, h = img.size w_, h_ = img_cropped.size wx = x * w hy = y * h bw = bbox[0] bh = bbox[1] x_final = (wx - bw) / w_ y_final = (hy - bh) / h_ y_final = 1 - y_final # 打印最终的红点坐标 print(f"({x:.4f},{1-y:.4f})-> ({x_final:.4f}, {y_final:.4f})") # save image if not nosave: img_cropped.save(filename) if __name__ == "__main__": if len(sys.argv) < 4: print( "Usage: python crop.py [filename] [pivot_x] [pivot_y] [nosave]\n Crop the image and calculate the new pivot point coordinates.\nnosave: do not crop image." ) exit(1) im = sys.argv[1] px = float(sys.argv[2]) x = px py = float(sys.argv[3]) y = 1 - py nosave = len(sys.argv) > 4 and sys.argv[4][0] == "n" crop(im, x, y, nosave) Edited June 1, 2023 by Rickzzs Link to comment https://forums.kleientertainment.com/forums/topic/145085-new-character-animation-template/#findComment-1637395 Share on other sites More sharing options...
Rickzzs Posted June 2, 2023 Author Share Posted June 2, 2023 (edited) Update: new symbol swap_face_eye_glow available to swap face. To add this symbol, here is a reference that overrides face with swap_face_eye_glow. So you can see the effect. hat_voidcloth.zip Edited June 5, 2023 by Rickzzs 1 Link to comment https://forums.kleientertainment.com/forums/topic/145085-new-character-animation-template/#findComment-1637626 Share on other sites More sharing options...
Rickzzs Posted June 9, 2023 Author Share Posted June 9, 2023 Mount animations with normal beefalo and saddle. This archive does not contain character layers, so you need to copy the folders from character template. mount.7z 1 Link to comment https://forums.kleientertainment.com/forums/topic/145085-new-character-animation-template/#findComment-1639832 Share on other sites More sharing options...

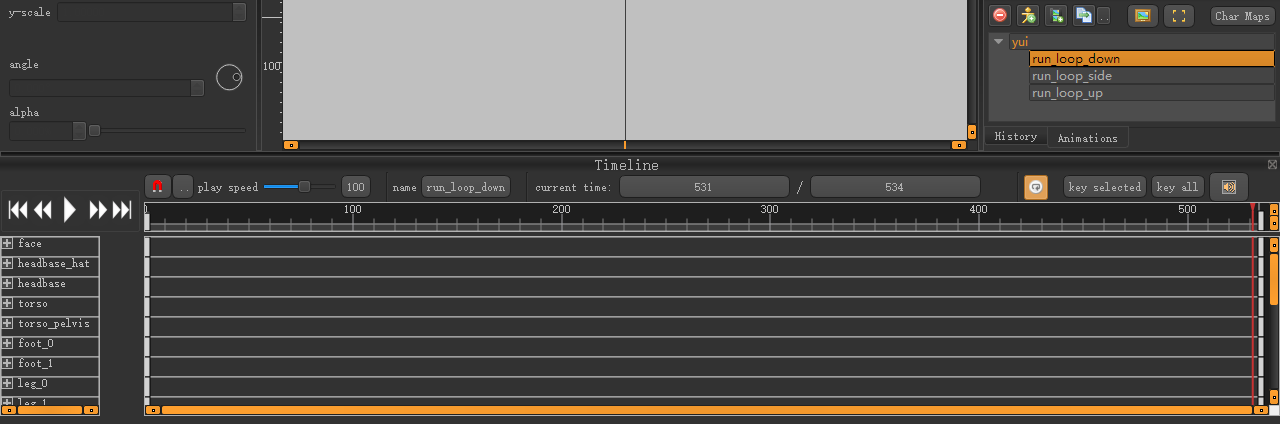

Rickzzs Posted August 17, 2023 Author Share Posted August 17, 2023 (edited) Leave a comment here when 20231023. What's Outdated: 1. After the Wonkey update, there are some new images of hands and feet and possibly tail. However, this template doesn't contain them. If you want your character to monkey-run, you need to build your own template. 2. The swap_face_eye_glow didn't survive the beta test. So it remains useless. Just ignore it. 3. Sitting update adds face-40 ( face-32/33 will have duration 8/7 now) and face-41 that is used by anim player_sit.zip, which includes an animation of sitting talking. Note for artists: 1. It is advised to download template_centered.zip because if you use this template, you can enlarge/shrink the canvas from the center point of canvas, and you don't need to keep the ratio, that means you can freely adjust the canvas. 2. Every time you change the shape of an image, save a new scml file. 3. You may want to look at emotes_xxx.scml and player_idles.scml to best understand where each image is being used. 4. You can pick any of a scml file to compile. But remember to delete anim.bin in the archive afterwards. Actually the animation itself doesn't matter, so I will compile something like a two-framed very simple animation (a screenshot attached below). All the folders necessary for a proper character build are listed here. Delete transparent folders and useless folders when you compile. Remind that if you delete a folder, you need to save a new scml file then, or the compilation will fail due to missing images. Spoiler swap_face beard face hairfront headbase_hat headbase skirt torso torso_pelvis foot leg hair_hat hair hand arm_upper arm_upper_skin arm_lower_cuff arm_lower hairpigtails tail cheeks arm_upper beard 5. You may want to run my script 'cropscml.py' (provided here https://github.com/ZzzzzzzSkyward/DSTmodutils/blob/master/pyscripts/cropscml.py) if your images are too empty. 6. https://github.com/ZzzzzzzSkyward/DSTmodutils/blob/master/pyscripts/cli.py can be used for compilation. Simply run python dstmodutils/pyscripts/cli.py xxx.scml -crop Replace ' dstmodutils/pyscripts/cli.py' and 'xxx.scml' with the actual path of your files. Edited November 9, 2023 by Rickzzs Link to comment https://forums.kleientertainment.com/forums/topic/145085-new-character-animation-template/#findComment-1659615 Share on other sites More sharing options...
Rickzzs Posted August 31, 2023 Author Share Posted August 31, 2023 (edited) Another tool is out now. This one is dedicated to changing texture. So it is a good tool for making characters. Tutorial: Have Windows 10 or higher version of system to run the exe inside animtool.zip. Otherwise you can download python script https://github.com/ZzzzzzzSkyward/DSTmodutils/tree/master/pyscripts Select a character you'd like to start with. For example wilson. Go to C:\Steam\steamapps\common\Don't Starve Together\data\anim\dynamic\, use the tool (either dsanimtool.exe or cli.py) to convert wilson.dyn to wilson.zip. Go to C:\Steam\steamapps\common\Don't Starve Together\data\databundles\anim_dynamic.zip, you can find another wilson.zip there. Extract atlas-0.tex and build.bin to a folder. Convert this folder into images and build.json. Download player_data.7z, extract to the same folder. Open index.html, load player_anim.json and your build. The build.json convert by the tool can be edited. Follow the instruction here how to change image size and pivot. If you want to load more than one build, you need to gather all image folders together, or specify in each build.json "Path":"where this build's image are located relative to the base folder/", for example, if you have a folder "wilson", {"Path":"wilson/","Atlas":["atlas-0.tex"],"Symbol":{................. 5. When you are done. Use the tool to compile your folder with parameters of build.json and image folder. Like dsanimtool.exe your_folder/character_name.json your_folder/ or python pyscripts/cli.py character_name.json your_images/ Do not forget to change the json file name to your character name. player_data.7z dsanimtool.zip Edited September 2, 2023 by Rickzzs 2 Link to comment https://forums.kleientertainment.com/forums/topic/145085-new-character-animation-template/#findComment-1662657 Share on other sites More sharing options...

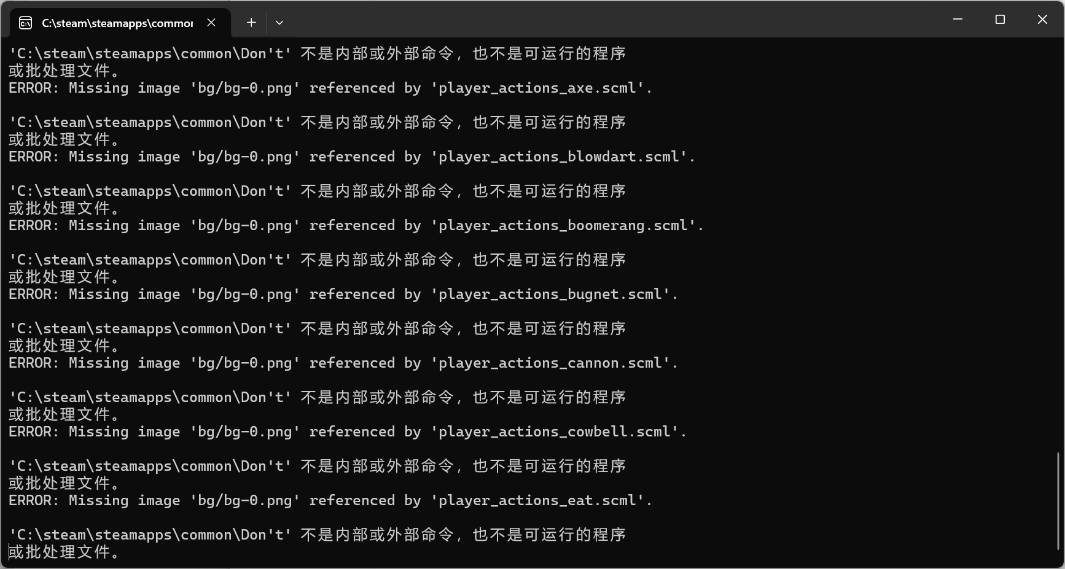

sansansanyan Posted May 4, 2024 Share Posted May 4, 2024 出现了这样的问题 请问有什么解决方法吗 麻烦大佬了 Link to comment https://forums.kleientertainment.com/forums/topic/145085-new-character-animation-template/#findComment-1712512 Share on other sites More sharing options...
