A Special Thank You to @hydrotoast for thinking of this and running a script to gather this data.

A useful tool for anyone who want to make a exploits of these heat changes. Red means heat gain and blue means heat loss. Delta SHC is Final SHC-Initial SHC. Gamma SHC is Final SHC/Initial SHC.

These following links for to a cloud version that will be edited as mistake are corrected and new elements/ideas are added.

Excel - https://1drv.ms/x/s!Ar7nZ67xQ2Cfzx534UTna9_2o8Bs?e=WfGAgV

Google Spreadsheet - https://docs.google.com/spreadsheets/d/18Ur9Fp40DA5zOLzDpuvGeMEOq7VPvDmW/edit?usp=sharing&ouid=116121856186543139874&rtpof=true&sd=true

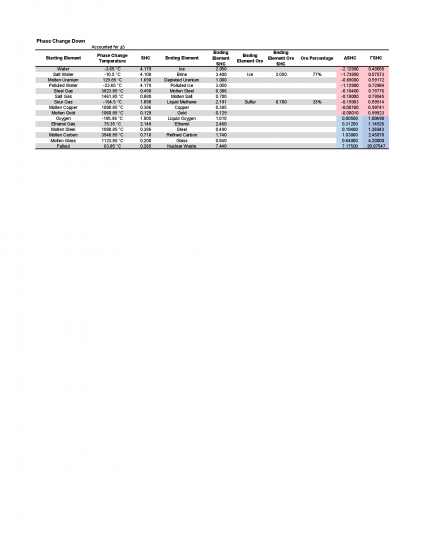

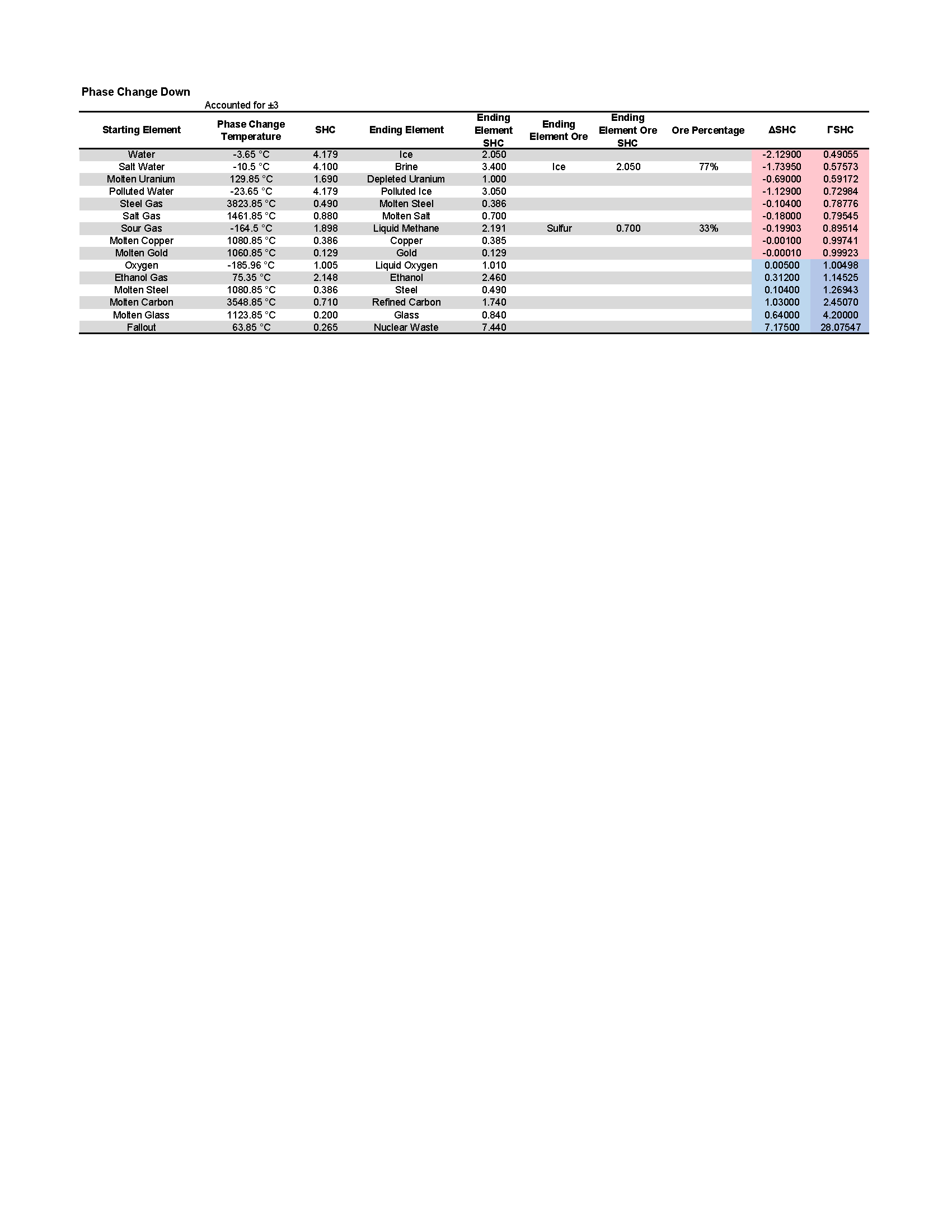

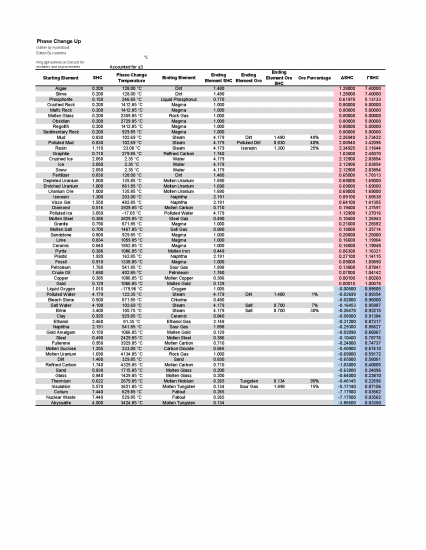

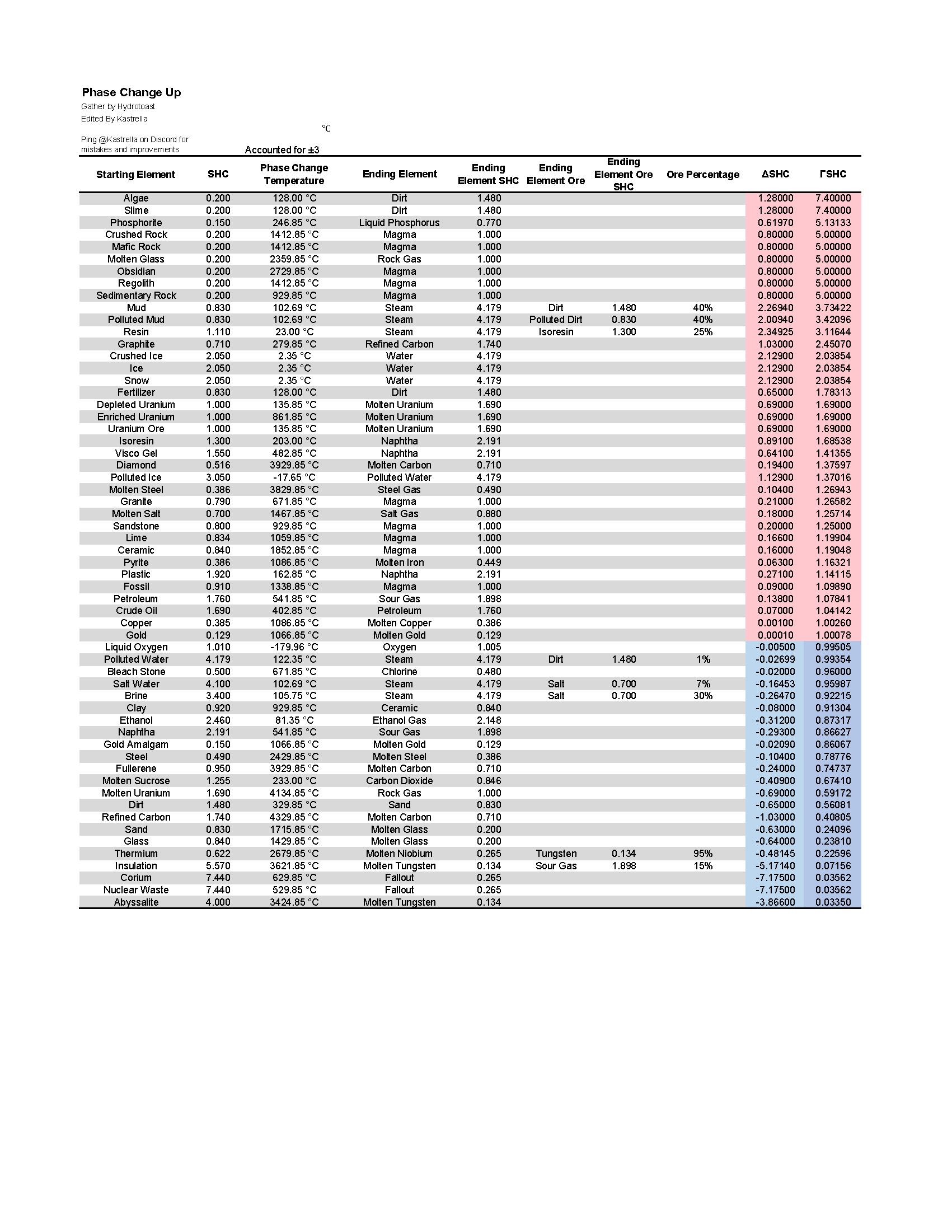

765146305_ONISHCChangefromPhaseChange_Page_1.thumb.png.fe2399e5516baf618f6db90426ab7222.png2010925607_ONISHCChangefromPhaseChange_Page_2.thumb.png.44614cef70e9f2867dd2aa51c7000e23.png

PDF version for anyone who want this ----> ONI SHC Change from Phase Change.pdf
