Temperature controlled liquid oxygen/hydrogen production


Recommended Posts

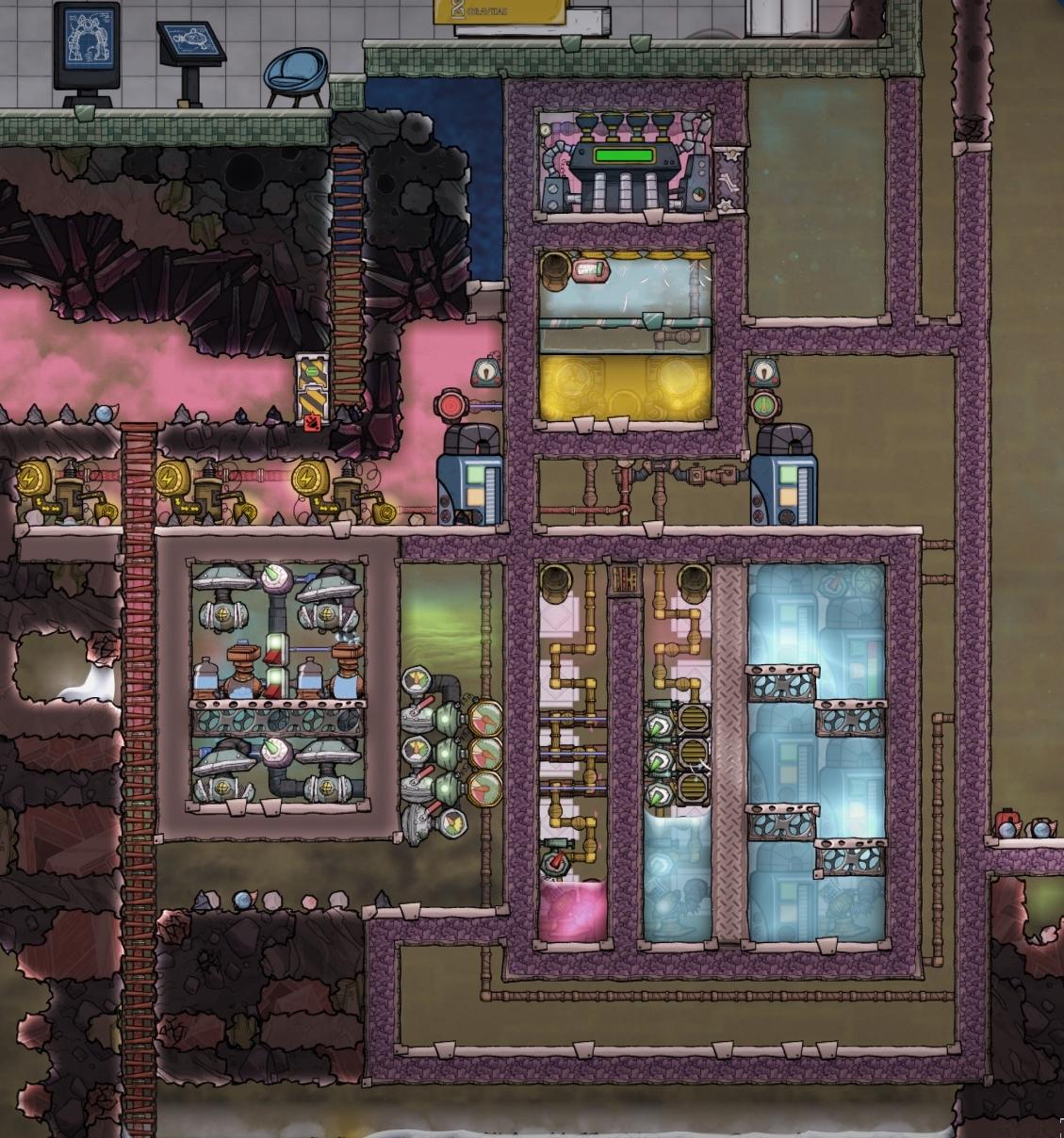

Pretty new to the game and just unlocked the hydrogen engine. I wanted to try and produce the liquid oxygen and hydrogen without the need for any kind of pre-filter. Came up with this design. Definitely not the most efficient, but any suggestions for improvements would be welcome.

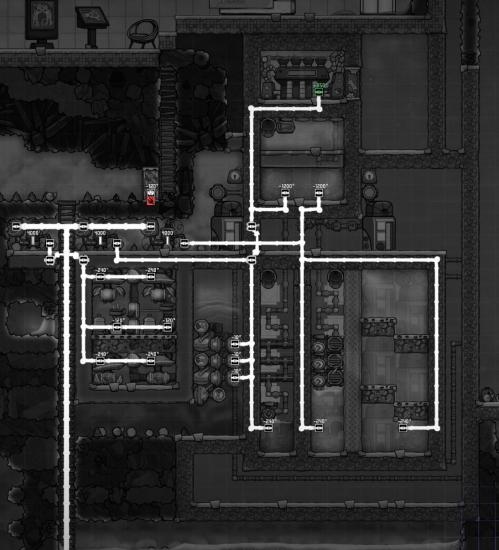

Power

Spoiler

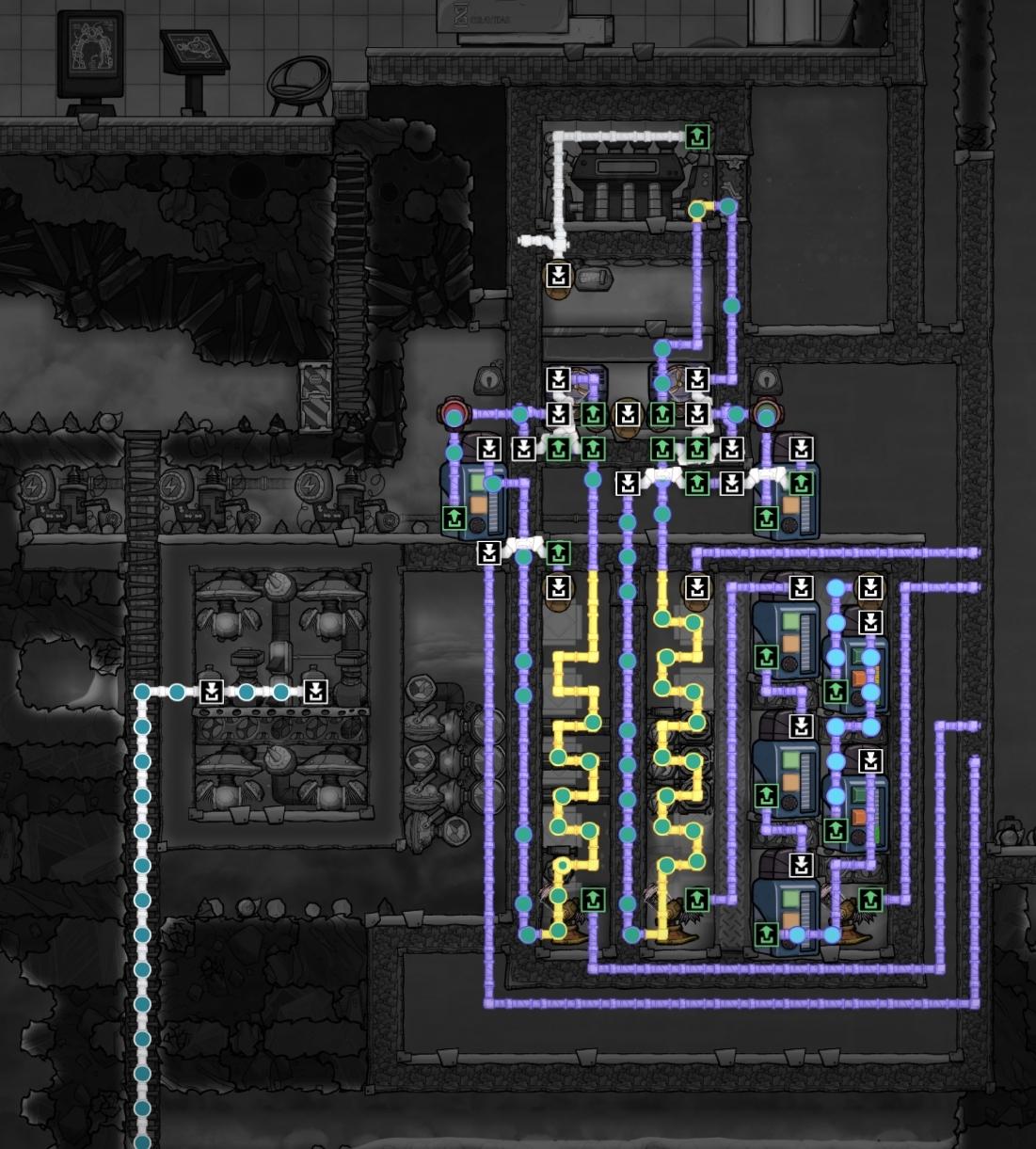

Plumbing

Spoiler

126981217_liquidoxygenhydrogenplumbing.thumb.jpg.b6148f12e39bd9455beaa2b3f887546f.jpg

Gas

Spoiler


Automation

Spoiler

1089001075_liquidoxygenhydrogenautomation.thumb.jpg.e2b1d7174d9475eaa408c7323940c6ae.jpg

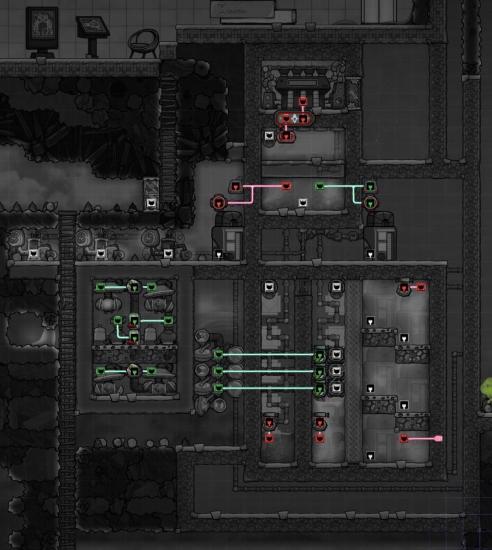

Main points are that the right chamber thermo sensor is set to activate the aquatuner  above -220 °C, left is set to above -255 °C. The oxygen condenses almost immediately after coming out of the vents. The vacuum formed by the hydrogen condensing helps to keep pulling hydrogen into the left chamber.

Took a bit of time to get started up, but it seems pretty stable now.
