I've hit the spinning cursor of death 3 times now while in the Research screen, panning around (DLC enabled, haven't tried in vanilla ONI). On the last iteration, I let the machine sit, just in case it might recover - the machine eventually rebooted itself, indicating a kernel panic.
I think something in ONI is crashing behind a mutex, leaving the display to eventually lock up. At least, all the spin logs show ONI sitting on a mutex while the WindowServer is waiting for it to wake up.
Here's the relevant snippets from my last recorded spin dump:
Process: WindowServer [254]
UUID: 90F1EAB8-1AD7-35D2-9555-B60C0D9C7BBF
Path: /System/Library/PrivateFrameworks/SkyLight.framework/Resources/WindowServer
Architecture: x86_64
Footprint: 137.32 MB
Start time: 2020-12-24 07:55:44 -0800
End time: 2020-12-24 07:55:49 -0800
Num samples: 12 (1-12)
CPU Time: <0.001s
Note: 2 idle work queue threads omitted
Thread 0x5d9 12 samples (1-12) priority 79 (base 79)
<IO tier 0>
12 start + 1 (libdyld.dylib + 109769) [0x7fff72858cc9] 1-12
12 ??? (WindowServer + 4910) [0x10546032e] 1-12
12 SLXServer + 1461 (SkyLight + 2302303) [0x7fff67c7515f] 1-12
12 server_loop + 91 (SkyLight + 2302401) [0x7fff67c751c1] 1-12
12 CGXRunOneServicesPass + 218 (SkyLight + 2298343) [0x7fff67c741e7] 1-12
12 run_timer_pass + 482 (SkyLight + 2092595) [0x7fff67c41e33] 1-12
12 empty_update_callback(void*, double) + 278 (SkyLight + 1764826) [0x7fff67bf1dda] 1-12
12 CoreDisplay::Display::PresentScreenRefresh(PresentSyncType) + 220 (CoreDisplay + 259192) [0x7fff38678478] 1-12
12 CoreDisplay::Display::Commit(std::__1::vector<std::__1::unique_ptr<CoreDisplay::DisplayPipe::Transaction, std::__1::default_delete<CoreDisplay::DisplayPipe::Transaction> >, std::__1::allocator<std::__1::unique_ptr<CoreDisplay::DisplayPipe::Transaction, std::__1::default_delete<CoreDisplay::DisplayPipe::Transaction> > > >&) + 61 (CoreDisplay + 259861) [0x7fff38678715] 1-12
12 CoreDisplay::DisplayPipe::Commit(CoreDisplay::DisplayPipe::Transaction const&, bool) + 9187 (CoreDisplay + 832827) [0x7fff3870453b] 1-12
12 CoreDisplay::IOPTransaction::Submit() + 2890 (CoreDisplay + 520574) [0x7fff386b817e] 1-12
12 IOPresentmentDisplayPipe::IOPresentmentEnd(__IOPresentmentTransaction*, unsigned long long, bool) + 307 (IOPresentment + 74673) [0x7fff5d4ef3b1] 1-12
12 IOAccelDisplayPipeTransactionBegin + 90 (IOAccelerator + 25155) [0x7fff5d4ce243] 1-12
12 IOConnectCallScalarMethod + 76 (IOKit + 46597) [0x7fff3b56d605] 1-12
12 io_connect_method + 383 (IOKit + 14291) [0x7fff3b5657d3] 1-12
12 mach_msg_trap + 10 (libsystem_kernel.dylib + 3578) [0x7fff72999dfa] 1-12
*12 hndl_mach_scall64 + 22 (kernel + 786982) [0xffffff80002c0226] 1-12
*12 mach_call_munger64 + 517 (kernel + 2273349) [0xffffff800042b045] 1-12
*12 mach_msg_overwrite_trap + 722 (kernel + 1100514) [0xffffff800030cae2] 1-12
*12 ipc_kmsg_send + 309 (kernel + 1006901) [0xffffff80002f5d35] 1-12
*12 ipc_kobject_server + 568 (kernel + 1176456) [0xffffff800031f388] 1-12
*12 ??? (kernel + 2106818) [0xffffff80004025c2] 1-12
*12 is_io_connect_method + 547 (kernel + 8761843) [0xffffff8000a5b1f3] 1-12
*12 IOUserClient::externalMethod(unsigned int, IOExternalMethodArguments*, IOExternalMethodDispatch*, OSObject*, void*) + 478 (kernel + 8724430) [0xffffff8000a51fce] 1-12
*12 IOAccelDisplayPipeUserClient2::s_transaction_begin(IOAccelDisplayPipeUserClient2*, void*, IOExternalMethodArguments*) + 32 (IOAcceleratorFamily2 + 316252) [0xffffff7f8457835c] 1-12
*12 IOAccelDisplayPipeUserClient2::transactionBegin(unsigned int*) + 51 (IOAcceleratorFamily2 + 319933) [0xffffff7f845791bd] 1-12
*12 ??? (kernel + 2347435) [0xffffff800043d1ab] 1-12
*12 lck_mtx_lock_wait_x86 + 313 (kernel + 2349385) [0xffffff800043d949] 1-12
*12 thread_block_reason + 175 (kernel + 1285359) [0xffffff8000339cef] 1-12
*12 ??? (kernel + 1291441) [0xffffff800033b4b1] 1-12
*12 machine_switch_context + 200 (kernel + 2361416) [0xffffff8000440848] (blocked by turnstile with priority 92 waiting for Oxygen Not Included [900] thread 0x4f57) 1-12
Process: Oxygen Not Included [900]
UUID: 6D82BA8C-38A6-3A10-8CDE-BDD368B8F4CF
Path: /Users/USER/Library/Application Support/Steam/*/OxygenNotIncluded.app/Contents/MacOS/Oxygen Not Included
Architecture: x86_64
Footprint: 3761.34 MB
Start time: 2020-12-24 07:55:44 -0800
End time: 2020-12-24 07:55:49 -0800
Num samples: 12 (1-12)
CPU Time: 2.873s
Note: 1 idle work queue thread omitted
Thread 0x36bd Thread name "MainThrd" 12 samples (1-12) priority 31 (base 31)
<process frontmost, thread QoS unspecified (requested override user initiated), process unclamped, process received importance donation from WindowServer [254], IO tier 0>
12 start + 1 (libdyld.dylib + 109769) [0x7fff72858cc9] 1-12
12 ??? (<13927ECB-C753-315F-9231-0AEDEA857009> + 25065157) [0x1095c86c5] 1-12
12 NSApplicationMain + 777 (AppKit + 13206) [0x7fff35a22396] 1-12
12 -[NSApplication run] + 658 (AppKit + 202126) [0x7fff35a5058e] 1-12
12 ??? (<9F013F92-58EB-3DF3-83A4-020CAE079B01> + 106142) [0x1037b4e9e] 1-12
12 -[NSApplication(NSEvent) _nextEventMatchingEventMask:untilDate:inMode:dequeue:] + 1352 (AppKit + 260224) [0x7fff35a5e880] 1-12
12 _DPSNextEvent + 883 (AppKit + 266297) [0x7fff35a60039] 1-12
12 _BlockUntilNextEventMatchingListInModeWithFilter + 64 (HIToolbox + 193913) [0x7fff3741a579] 1-12
12 ReceiveNextEventCommon + 584 (HIToolbox + 194517) [0x7fff3741a7d5] 1-12
12 RunCurrentEventLoopInMode + 292 (HIToolbox + 195261) [0x7fff3741aabd] 1-12
12 CFRunLoopRunSpecific + 462 (CoreFoundation + 532030) [0x7fff387ede3e] 1-12
12 __CFRunLoopRun + 1871 (CoreFoundation + 535530) [0x7fff387eebea] 1-12
12 __CFRunLoopDoTimers + 322 (CoreFoundation + 646727) [0x7fff38809e47] 1-12
12 __CFRunLoopDoTimer + 859 (CoreFoundation + 648031) [0x7fff3880a35f] 1-12
12 __CFRUNLOOP_IS_CALLING_OUT_TO_A_TIMER_CALLBACK_FUNCTION__ + 20 (CoreFoundation + 649209) [0x7fff3880a7f9] 1-12
12 __NSFireTimer + 67 (Foundation + 783098) [0x7fff3aee82fa] 1-12
12 ??? (<13927ECB-C753-315F-9231-0AEDEA857009> + 25026994) [0x1095bf1b2] 1-12
12 ??? (<13927ECB-C753-315F-9231-0AEDEA857009> + 13456193) [0x108ab6341] 1-12
12 ??? (<13927ECB-C753-315F-9231-0AEDEA857009> + 13454711) [0x108ab5d77] 1-12
12 ??? (<13927ECB-C753-315F-9231-0AEDEA857009> + 13454606) [0x108ab5d0e] 1-12
12 ??? (<13927ECB-C753-315F-9231-0AEDEA857009> + 13517476) [0x108ac52a4] 1-12
12 ??? (<13927ECB-C753-315F-9231-0AEDEA857009> + 13512500) [0x108ac3f34] 1-12
12 ??? (<13927ECB-C753-315F-9231-0AEDEA857009> + 7391311) [0x1084ed84f] 1-12
12 ??? (<13927ECB-C753-315F-9231-0AEDEA857009> + 7307893) [0x1084d9275] 1-12
12 ??? (<13927ECB-C753-315F-9231-0AEDEA857009> + 5627090) [0x10833ecd2] 1-12
12 ??? (<13927ECB-C753-315F-9231-0AEDEA857009> + 5627323) [0x10833edbb] 1-12
12 ??? (<13927ECB-C753-315F-9231-0AEDEA857009> + 5748246) [0x10835c616] 1-12
12 ??? (<13927ECB-C753-315F-9231-0AEDEA857009> + 26778792) [0x10976aca8] 1-12
12 _dispatch_semaphore_wait_slow + 98 (libdispatch.dylib + 12223) [0x7fff727fffbf] 1-12
12 semaphore_wait_trap + 10 (libsystem_kernel.dylib + 3638) [0x7fff72999e36] 1-12
*12 semaphore_wait_continue + 0 (kernel + 1334000) [0xffffff8000345af0] 1-12
If you can't repro, and you'd like me to try out a build with symbols for a better callstack, I'd be happy to help.
Wil
*update*: hit it again, this time a crash report that appeared after restarting shows that we had an allocation failure:
Thread 5 Crashed:: com.apple.NSEventThread
0 UnityPlayer.dylib 0x0000000109c681d7 MemoryProfiler::RegisterAllocation(void*, MemLabelId const&, char const*, int, unsigned long) + 151
1 UnityPlayer.dylib 0x000000010957702e MemoryManager::RegisterAllocation(MemoryManager::AllocationLogDetails const&, BaseAllocator*) + 206
2 UnityPlayer.dylib 0x00000001095732bc MemoryManager::Allocate(unsigned long, unsigned long, MemLabelId const&, AllocateOptions, char const*, int) + 1068
3 UnityPlayer.dylib 0x000000010956e703 operator new(unsigned long) + 67
4 com.apple.SkyLight 0x00007fff5fb11c62 SLEventCreateNextEvent + 28
5 com.apple.HIToolbox 0x00007fff2f41dcc7 PullEventsFromWindowServerOnConnection(unsigned int, unsigned char, __CFMachPortBoost*) + 45
6 com.apple.HIToolbox 0x00007fff2f41dc72 MessageHandler(__CFMachPort*, void*, long, void*) + 48
7 com.apple.CoreFoundation 0x00007fff30814b05 __CFMachPortPerform + 250
8 com.apple.CoreFoundation 0x00007fff307e6304 __CFRUNLOOP_IS_CALLING_OUT_TO_A_SOURCE1_PERFORM_FUNCTION__ + 41
9 com.apple.CoreFoundation 0x00007fff307e6250 __CFRunLoopDoSource1 + 541
10 com.apple.CoreFoundation 0x00007fff307e4d79 __CFRunLoopRun + 2270
11 com.apple.CoreFoundation 0x00007fff307e3e3e CFRunLoopRunSpecific + 462
12 com.apple.AppKit 0x00007fff2dbf7954 _NSEventThread + 132
13 libsystem_pthread.dylib 0x00007fff6aa53109 _pthread_start + 148
14 libsystem_pthread.dylib 0x00007fff6aa4eb8b thread_start + 15
Bring up the research panel, pan around - it locks up at some point.

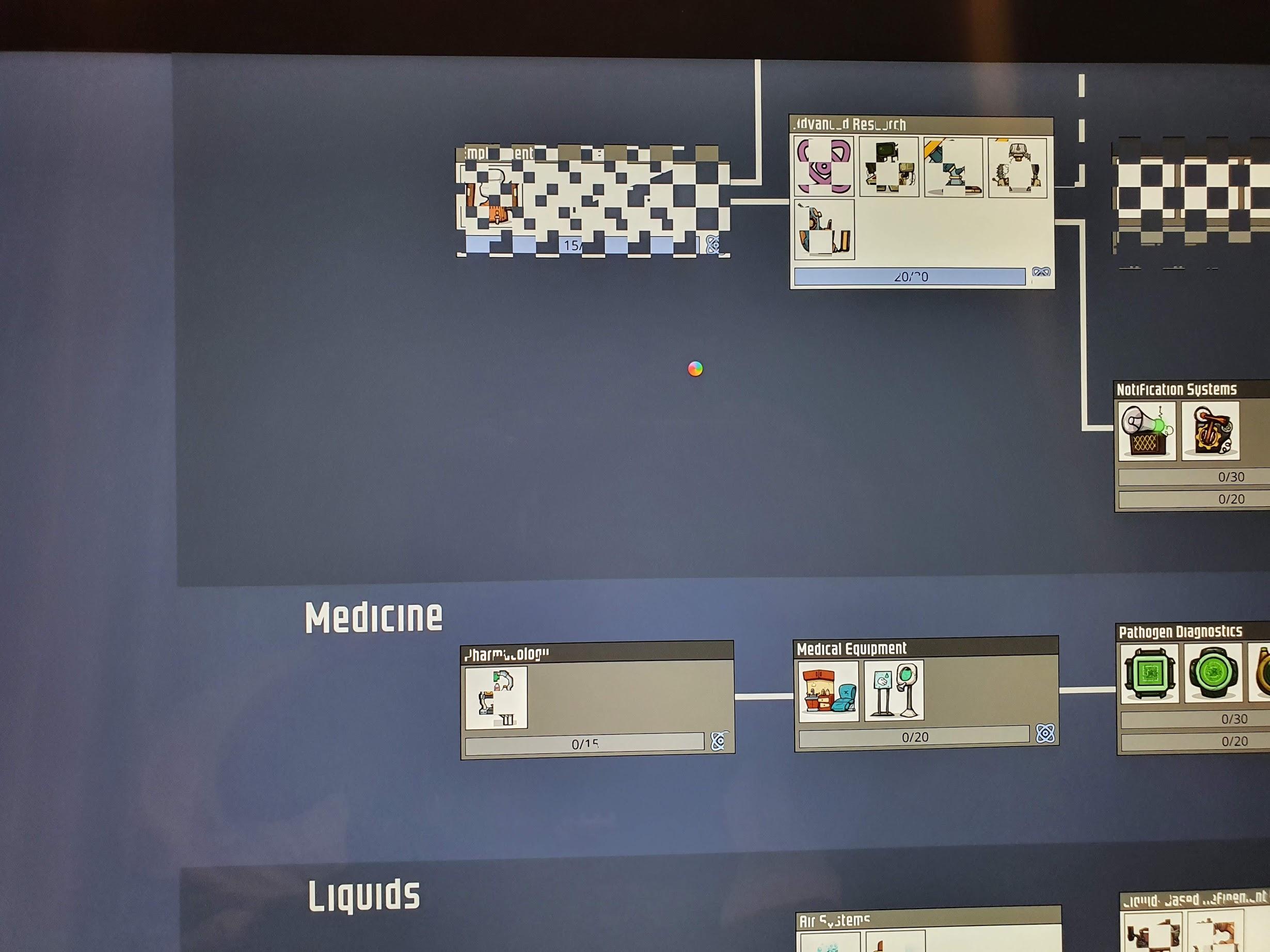

*updated* attached a screenshot of the graphics getting corrupted when I hit the spinning cursor of death. At this point, I have to reboot the machine (ie I can never crash out cleanly and/or force quit the app, the OS is hosed from here on out). (Note that the gfx getting corrupted doesn't always happen, I've seen it twice so far out of the several crashes I've hit. Regardless, when the beach ball shows up on the research screen, I know I'm dead in the water.)
